Built for laundry, textile care, and garment applications — the A300 prints wash-resistant fabric tags and custom satin labels at 300dpi, with 108mm print width, 150mm/s speed, and full TSPL-II / ZPL-II dual command compatibility for instant integration with your label software, WMS, or ERP.
| Models | A300 |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300dpi |
| Print Speed | 150mm/s |
| Print Width | 108mm |
| Print Length | 3000mm |
| Command Set | TSPL-II, ZPL-II Compatible |
| Memory (Standard) | FLASH 32MB + SDRAM 32MB |
| Memory (Optional) | FLASH 2Gbit + SDRAM 1Gbit |
| Media Types | Continuous, Gap, Black Mark, Tag, Care Label, Ribbon Tag, Wristband |
| Fabric Types | Nylon, Satin tape |
| Media Width | 20 - 110mm |
| Media Thickness | 0.06mm - 1.5mm |
| Roll Outer Diameter | Max. 127mm |
| Core Size | Max. 127mm |
| Ribbon Types | Wax, Wax-Resin, Resin |
| Ribbon Length | Max. 300m |
| Ribbon Core | 25.4mm |
| Ribbon Width | 30 - 110mm (outward winding) |
| Media Handling | Tear-Off, Front Exit |
| Interfaces (Standard) | USB 2.0 Type-B + Ethernet + Serial (RS232) + USB Host |
| Interfaces (Optional) | USB + Ethernet + Serial + USB Host + Bluetooth + WiFi |
| USB Host | Barcode scanner, keyboard, BAS program download |
| RS232 | Electronic scale, weight-based printing |
| Sensors | Transmissive and Reflective media sensor, Thermistor printhead sensor |
| Buttons | Feed Button / Pause Button |
| Protection | Overheat, Gap Detection, Black Mark Detection, Cover Open Detection, Paper-Out Alert, Cutter Error |
| 1D Barcode | CODE128, CODE39, CODE93, UPC-A, UPC-E, EAN-8, EAN-13, Codabar, Interleaved 2 of 5, MSI, PLESSEY, ITF14, TELEPEN, LOGMARS |
| 2D Barcode | QR Code, PDF417, DataMatrix, Maxicode, MicroPDF417, Aztec, Codablock, Code49 |
| Graphics | Monochrome PCX, BMP downloadable to FLASH/DRAM |
| Character Set | Single-byte FONT 0 to FONT 8, UTF-8, Vector Fonts (Arabic, Thai, Hindi, Turkish, etc.) |
| Scaling / Rotation | 1-10x horizontal/vertical scaling, 0/90/180/270 degree rotation |
| Cutter | Standard: Rotary Cutter (500k cuts, 0.1mm care labels) / Guillotine Cutter (600k cuts, 80g paper) |
| Display (Optional) | 4.3 inch TFT LCD capacitive touchscreen, 480x800, 16-bit RGB, TF card slot |
| Operating Conditions | 5-40°C, 25-85% RH |
| Storage Conditions | -40-60°C, 10-90% RH |
| Power Supply | DC 24V / 2.5A |
| Weight | 2.5 kg |
| Dimensions | 205 x 270 x 168mm (L x W x H) |
| Certifications | CE, RoHS |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch the A300 fabric label printer in action — ribbon loading, fabric label printing, and cutter operation.
Request VideoStep-by-step setup video covering media loading, ribbon installation, and printhead alignment.
Request VideoGet up and running in minutes. Covers unboxing, media & ribbon loading, driver install, and the first test print.
Request PDFComplete reference covering TSPL-II / ZPL-II command sets, sensor calibration, cutter settings, and troubleshooting.
View ManualThe A300 Fabric Label Printer For Laundry & Textile Care is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your A300 Fabric Label Printer For Laundry & Textile Care integration.

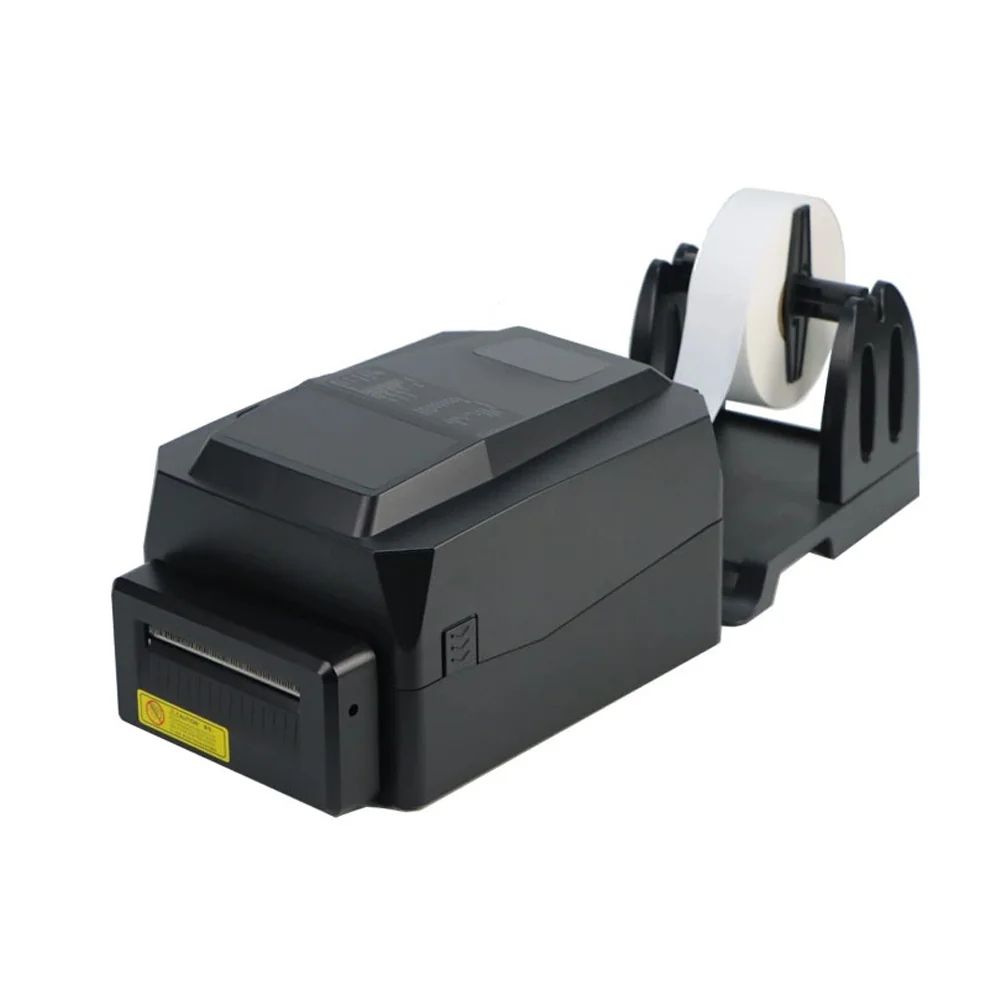

A standard rotary cutter rated for 500,000 cuts handles 0.1mm fabric and care labels, while the guillotine cutter rated for 600,000 cuts manages 80g paper. Both feature no-backcut technology and anti-static brushes for clean, jam-free cutting of every label.
Thermal transfer and direct thermal printing in one device. TSPL-II and ZPL-II dual command compatibility ensures seamless integration with existing label design software, WMS, and ERP systems without driver changes.
Delivers 300dpi clarity at 150mm/s with a 108mm print width and 3000mm max print length, perfect for detailed care labels, small text, apparel brand tags, and retail price tags.
Handles continuous, gap, black mark, tag, care label, wristband, and nylon or satin tape fabric types from 20mm to 110mm wide. Wax, wax-resin, and resin ribbons up to 300m produce fabric labels that resist washing, heat, and abrasion.
Standard 32MB FLASH and 32MB SDRAM handle most label formats. For complex layouts with graphics and vector fonts, upgrade to 2Gbit FLASH and 1Gbit SDRAM for large-format storage and faster processing.
USB, Ethernet, Serial, and USB Host are standard. The USB Host port connects barcode scanners and keyboards for standalone data input, while RS232 supports electronic scales for weight-based label printing.
Optional 4.3 inch TFT LCD capacitive touchscreen (480x800 resolution, 16-bit RGB) enables standalone operation, label format selection, and real-time status monitoring without a connected PC.
The A300 fabric label printer is tested and certified for compliance with international safety, electromagnetic, and environmental standards, suitable for deployment across global markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Restriction of Hazardous Substances compliant, ensuring the product is free from restricted hazardous materials in electrical and electronic equipment.
We provide flexible OEM and ODM services for the A300 fabric label printer, helping partners build branded labeling hardware tailored to their market requirements.
Silk-screen logo, custom color finishes, and branded packaging to match your corporate identity.
Custom firmware adjustments, TSPL-II and ZPL-II command set compatibility, and SDK support for software integration teams.
Choose interface combinations and optional Bluetooth, WiFi, or Bluetooth+WiFi modules to match regional market demands and deployment scenarios.
Configure rotary or guillotine cutters with no-backcut technology, and optional 4.3 inch TFT LCD touchscreen for standalone operation.
Custom media sensor calibration for fabric, care labels, and wristband formats with optimized print quality profiles.
MOQ-flexible pricing, custom retail packaging, and standard 12-month warranty with remote technical support for global customers.
Compare the three fabric label printer models to find the right resolution, speed, and print width for your laundry, textile, and garment labeling needs.
| Model | with cutter | Resolution | Print Speed | Print Width | Max Print Length | Best For |
|---|---|---|---|---|---|---|
| A200 | Standard | 203dpi | 200mm/s | 104mm | 4000mm | High-speed laundry tags, shipping labels, warehouse barcode labels |
| A300Recommended | Standard | 300dpi | 150mm/s | 108mm | 3000mm | Detailed care labels, small text, apparel brand tags, retail price tags |
| A600 | Standard | 600dpi | 100mm/s | 105mm | 1000mm | Ultra-fine micro-text, compact 2D codes, pharmaceutical and electronics labels |

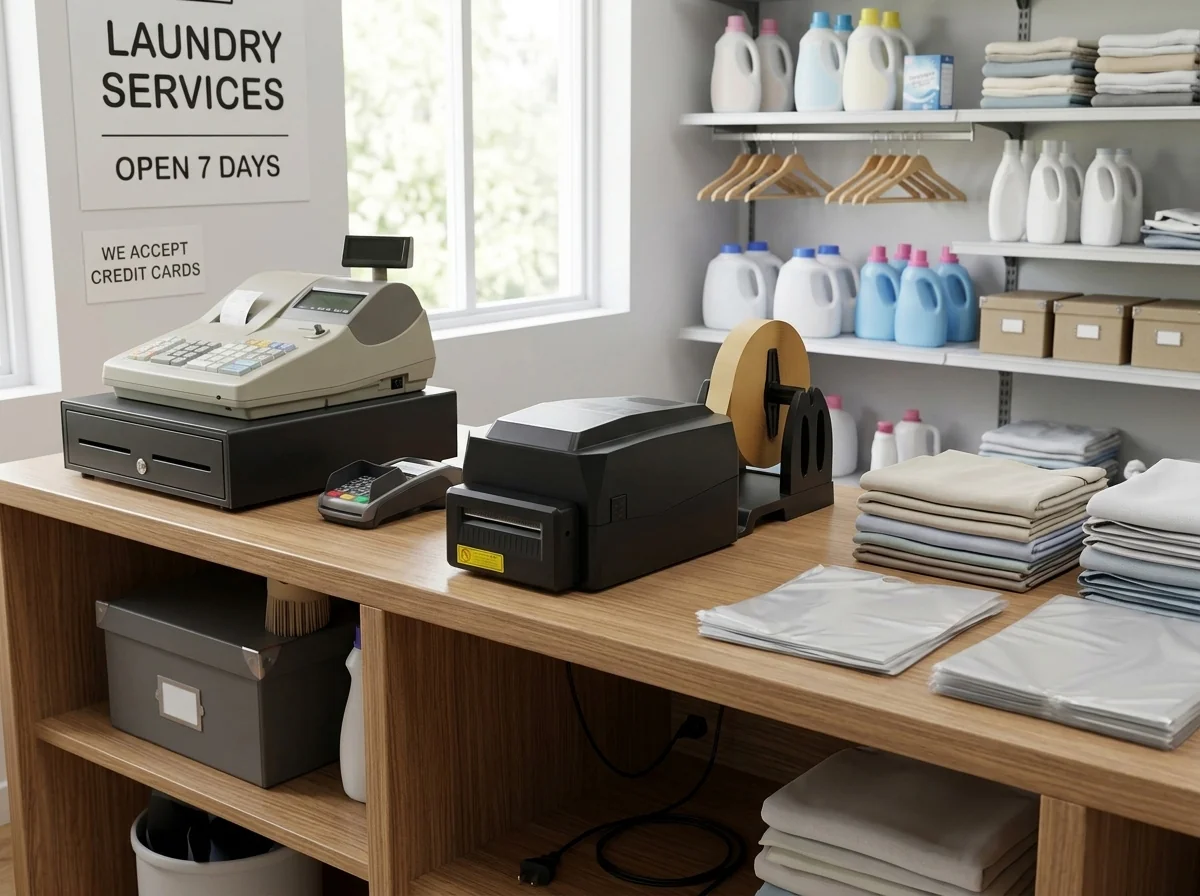

The A300 fabric label printer is built for laundry and textile care, producing durable, wash-resistant labels that survive repeated washing, heat, and chemical exposure.
Print durable care labels and laundry tags with resin ribbon that withstand repeated washing, heat, and chemical exposure. Ideal for uniform rental and linen management.
Explore Garment Solutions →Contact our team for datasheets, model selection guidance (A200/A300/A600), OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right fabric label printer for your laundry, textile, or apparel business.
