The X3C 80mm thermal receipt printer delivers full-width, 203mm/s printing with auto-reprint and linerless support, built for retail, restaurant & catering, and logistics.
With a 150KM print head life, wall-mountable or desktop placement, and support for GB18030, BIG5, and KSC5601 character sets, the X3C is built for global deployment. CE and FCC certified, with full OEM and ODM customization available for partners who need branded hardware solutions.
| Model | X3C |
| Print Method | Direct Thermal Line |
| Resolution | 203 dpi |
| Print Width | 80mm (Full Width) |
| Print Speed | 203mm/s |
| Auto Cutter | Yes - Full Cut & Partial Cut Supported |
| Interfaces | USB+LAN / USB+Serial+LAN / USB+LAN+Bluetooth / USB+LAN+WiFi |
| Print Head Life | 150KM |
| Buffer | RAM: 8M, Flash: 16M |
| Command Set | TSPL |
| Paper Type | Black-mark, Continuous, Label, Linerless Paper |
| Paper Width | 15mm - 80mm (Max 80mm) |
| Paper Roll Diameter | Max. 80mm |
| Paper Core Size | 25.4mm / 12mm |
| Paper Thickness | 0.06 - 0.25mm |
| Character Set | GB18030, BIG5, KSC5601 |
| 1D Barcode | CODE128, EAN128, CODE25, ITF14, CODE39, CODE93, EAN13, EAN8, CODABAR, UPC-A, UPC-E, etc. |
| 2D Barcode | QR Code |

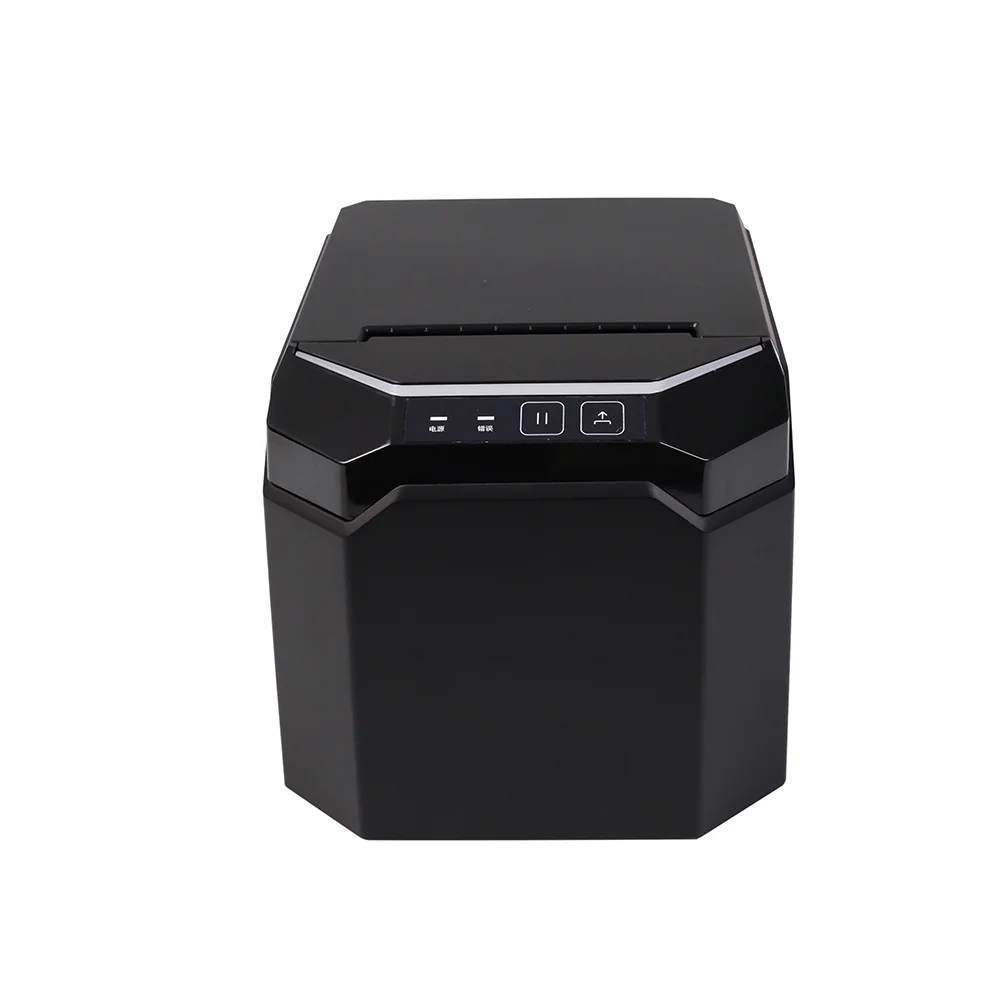

| Operation Buttons | Pause, FEED |
| Placement | Wall Hanging or Desktop |
| Power | Input: AC 100-240V 50/60Hz, Output: DC 24V/1.5A (2A / 2.5A Optional) |
| Work Environment | Temperature: 5-45°C, Humidity: 20-90% |
| Storage Environment | Temperature: -20-55°C, Humidity: 20-93% |
| Weight | 1.85 kg |
| Dimensions | 180 × 140 × 132mm |
| Package Dimension | 460 × 440 × 340mm (8pcs/carton) |
| Accessories | USB Cable × 1, Power Cord × 1, Quick Guide × 1 |
| Certifications | CE, FCC |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Demo of the 3-inch desktop thermal printer. Connect it to your PC via USB and edit full product info — item name, contact number, patterns and barcodes — easily with Microsoft Word or label-editing software, then finish batch printing on eco-friendly linerless labels. The built-in auto cutter separates each label cleanly, ready to stick on gift boxes right after cutting.
Watch More Videos80mm thermal receipt printer with USB + RS232 + Ethernet triple ports. The built-in smart reprint function keeps you covered at peak hours: if paper runs out and printing stops, simply reload the paper and the printer automatically reprints the complete receipt — no missed orders, fewer operational mistakes. Ideal for restaurants, retail and logistics.
Watch More VideosGet up and running in minutes. Covers unboxing, setup, media loading, and the first test print.
View ManualComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe X3C 80mm Thermal Receipt Printer with Auto Cutter is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your X3C 80mm Thermal Receipt Printer with Auto Cutter integration.
Print receipts, kitchen tickets, and order confirmations at 203mm per second, keeping queues moving during peak retail and catering hours.
Full 80mm print width at 203 dpi resolution delivers sharp logos, barcodes, QR codes, and text on every receipt. Supports QR code and a full set of 1D barcodes.

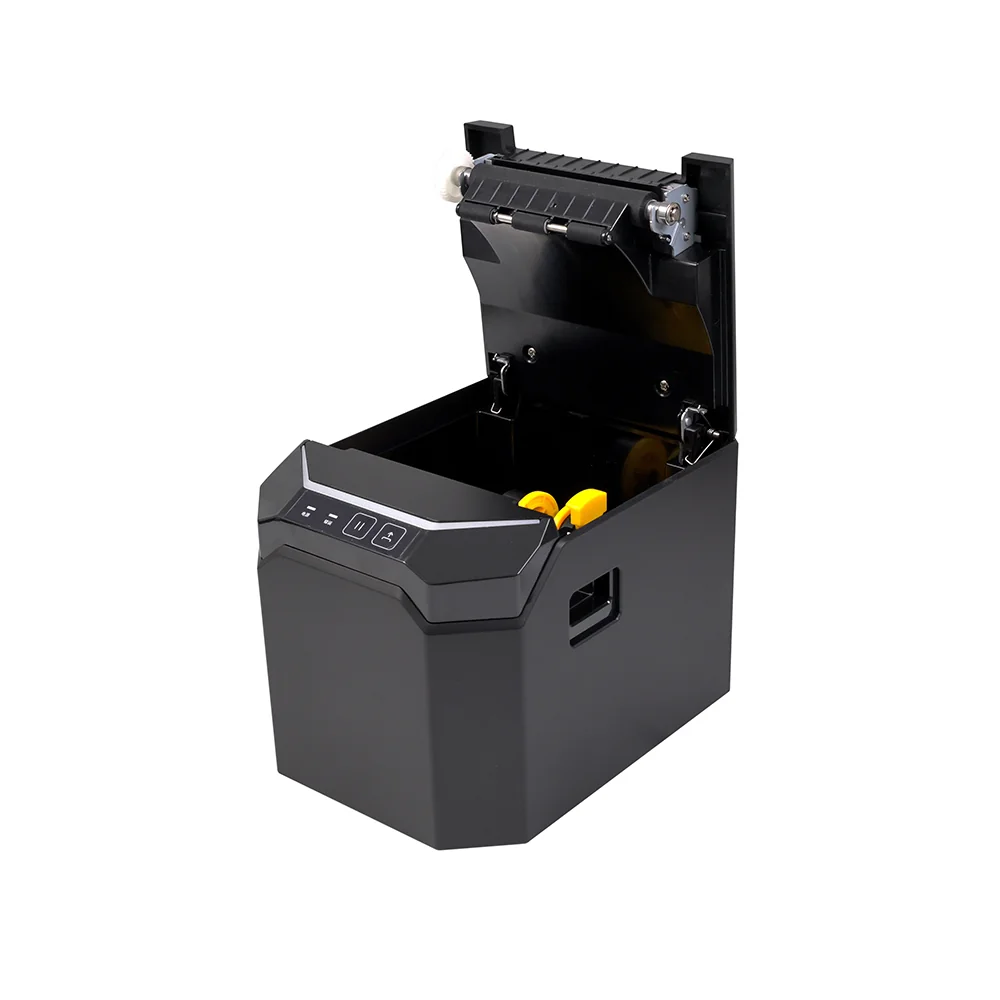

Integrated auto cutter supports both full cut-off and partial cut modes, suitable for long-term heavy-duty receipt and kitchen-ticket printing operations.
Oversized printer gears and a 150KM-rated print head ensure long mechanical life and stable performance under high-volume daily use.
Choose from four interface combinations: USB+LAN, USB+Serial+LAN, USB+LAN+Bluetooth, or USB+LAN+WiFi. The 100M Ethernet port ensures fast, stable data transfer.
The X3C supports both wall-hanging and desktop placement, freeing counter space in space-constrained cashier or kitchen-ticket environments.
When receipt paper runs out mid-print, the X3C automatically reprints the entire ticket from the start after new paper is loaded — not from the interrupted point. This eliminates half-cut receipts and the confusion of not knowing which table’s order was printing, a real pain point in high-volume restaurant and retail printing.
Supports linerless (backing-free) media to cut waste and roll changes while lowering consumable cost in high-throughput environments.
The X3C 80mm thermal receipt printer is tested and certified for hardware compliance, suitable for export and deployment in multiple international markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Meets United States Federal Communications Commission standards for electromagnetic interference and radio frequency emissions.
We provide flexible OEM and ODM services for the X3C thermal receipt printer, helping partners build branded POS hardware solutions for their markets.
Silk-screen logo, custom color finishes, and branded packaging to match your corporate identity.
Custom firmware adjustments, command set compatibility (TSPL / ESC-POS variants), and SDK support for software teams.
Choose interface combinations to match regional market demands: USB+LAN, USB+Serial+LAN, USB+LAN+Bluetooth, USB+LAN+WiFi.
Optional RAM/Flash combinations, power adapter amperage, and regional plug types for global distribution.
MOQ-flexible pricing, custom retail boxes, and accessories bundles for bulk orders.
Standard 12-month warranty, remote technical support, and spare parts service for global customers.
Compare the X3C with other thermal printers in our lineup to find the right fit for your business.
| Model | Type | Print Width | Speed | Auto Cutter | Best For |
|---|---|---|---|---|---|
| X3C | 80mm Desktop | 80mm | 203mm/s | Full & Partial | High-volume retail, catering, kitchen tickets |
| U80C POS Receipt Printer | 80mm Desktop | 72mm | 250/500mm/s | Full & Partial | High-volume retail, restaurant, kitchen tickets |
| S-U804 80mm Receipt Thermal Printer | 80mm Desktop | 80mm | 200mm/s | Yes | Standard retail POS counters |
| H803 Portable Thermal Printer | 80mm Portable | 25-80mm | 80-120mm/s | No | Mobile billing, logistics, field service |

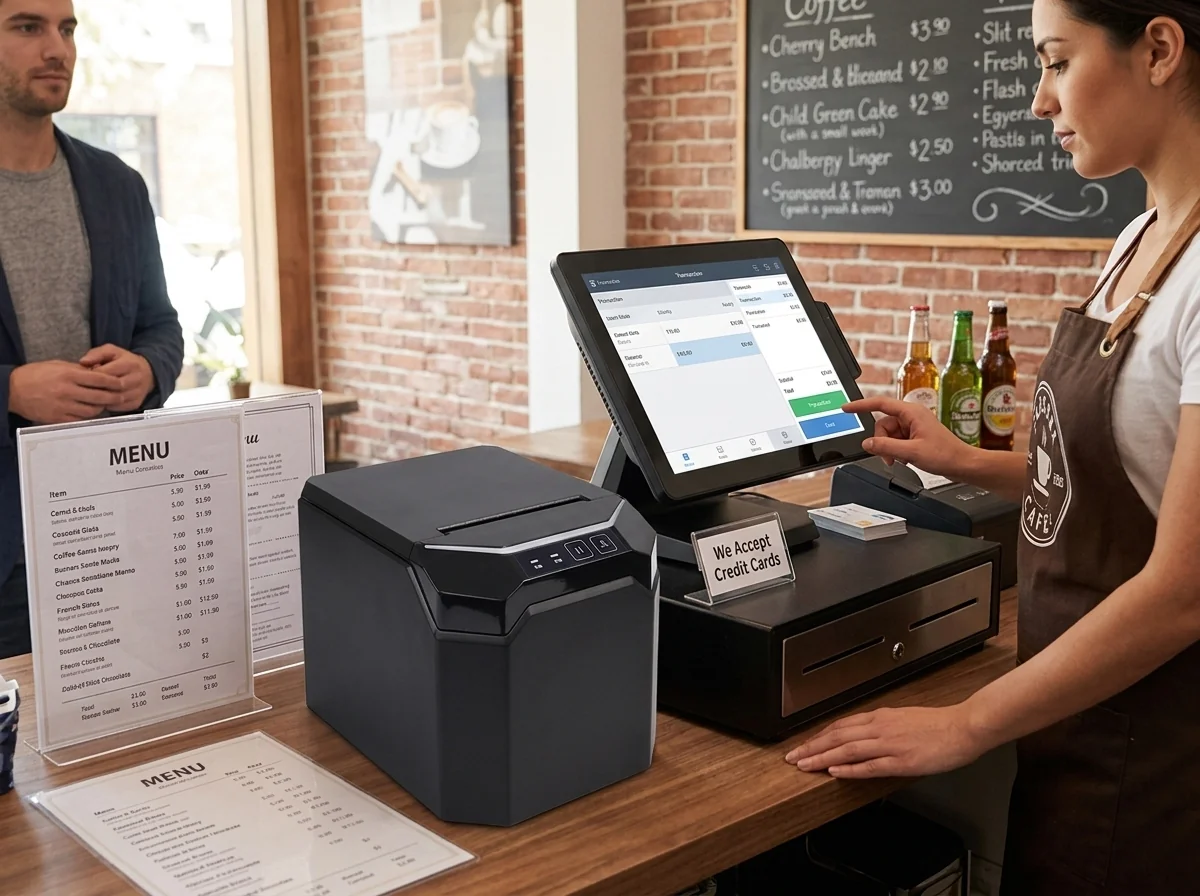

The X3C 80mm thermal receipt printer is a versatile high-speed printing solution for businesses that need reliable, high-volume receipt and ticket output.
Print kitchen tickets instantly with the auto cutter, supporting full and partial cut modes. The 203mm/s speed keeps service flowing during peak hours.
Explore Restaurant Solutions →High-volume retail counters benefit from 203mm/s print speed, 80mm width, and USB+LAN connectivity. Drop-in replacement for most POS systems.
Explore Retail Solutions →Issue printed tickets at event gates and ticket counters with full QR code and 1D barcode support. The 100M Ethernet port avoids misprints during peak times.
Explore Ticketing Solutions →Print shipping labels, delivery receipts, and inventory tags with continuous, black-mark, or linerless paper support. Paper width from 15mm to 80mm.
Explore Logistics Solutions →Issue guest receipts and folios at hotel check-in counters. Wall-mountable design saves desk space in compact front-desk environments.
Contact our team for datasheets, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right thermal receipt printer for your business.
