The S200 4inch Thermal Transfer Label Printer is a thermal printer featuring 203DPI, 200mm/s Speed.
Built for enterprise reliability, the printer features standard USB+Ethernet+Serial+USB Host interfaces, with optional Bluetooth and WiFi modules for wireless deployment. Memory is expandable from 32MB to 2Gbit FLASH and 1Gbit SDRAM for complex label formats with graphics and vector fonts. The USB Host port supports barcode scanners and keyboards for standalone data input, while RS232 connects to electronic scales for weight-based printing. Optional rotary or guillotine cutters with no-backcut technology handle care labels and paper labels. An optional 4.3 inch TFT LCD capacitive touchscreen enables standalone operation on factory floors. CE and RoHS certified, with full OEM and ODM customization available.
| Models | S200 |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203dpi |
| Print Speed | 200mm/s |
| Print Width | 104mm |
| Print Length | 4000mm |
| Command Set | TSPL-II, ZPL-II Compatible |
| Memory (Standard) | FLASH 32MB + SDRAM 32MB |
| Memory (Optional) | FLASH 2Gbit + SDRAM 1Gbit |
| Media Types | Continuous, Gap, Black Mark, Tag, Care Label, Ribbon Tag, Wristband |
| Media Width | 20 - 110mm |
| Media Thickness | 0.06mm - 1.5mm |
| Roll Outer Diameter | Max. 127mm |
| Core Size | Max. 127mm |
| Ribbon Types | Wax, Wax-Resin, Resin |
| Ribbon Length | Max. 300m |
| Ribbon Core | 25.4mm |
| Ribbon Width | 30 - 110mm (outward winding) |
| Media Handling | Tear-Off, Front Exit |
| Interfaces (Standard) | USB 2.0 Type-B + Ethernet + Serial (RS232) + USB Host |
| Interfaces (Optional) | USB + Ethernet + Serial + USB Host + Bluetooth + WiFi |
| USB Host | Barcode scanner, keyboard, BAS program download |
| RS232 | Electronic scale, weight-based printing |
| Sensors | Transmissive and Reflective media sensor, Thermistor printhead sensor |
| Buttons | Feed Button / Pause Button |
| Protection | Overheat, Gap Detection, Black Mark Detection, Cover Open Detection, Paper-Out Alert, Cutter Error |
| 1D Barcode | CODE128, CODE39, CODE93, UPC-A, UPC-E, EAN-8, EAN-13, Codabar, Interleaved 2 of 5, MSI, PLESSEY, ITF14, TELEPEN, LOGMARS |
| 2D Barcode | QR Code, PDF417, DataMatrix, Maxicode, MicroPDF417, Aztec, Codablock, Code49 |
| Graphics | Monochrome PCX, BMP downloadable to FLASH/DRAM |
| Character Set | Single-byte FONT 0 to FONT 8, UTF-8, Vector Fonts (Arabic, Thai, Hindi, Turkish, etc.) |
| Scaling / Rotation | 1-10x horizontal/vertical scaling, 0/90/180/270 degree rotation |
| Optional Cutter | Rotary Cutter (500k cuts, 0.1mm care labels) / Guillotine Cutter (600k cuts, 80g paper) |
| Display (Optional) | 4.3 inch TFT LCD capacitive touchscreen, 480x800, 16-bit RGB, TF card slot |
| Operating Conditions | 5-40°C, 25-85% RH |
| Storage Conditions | -40-60°C, 10-90% RH |
| Power Supply | DC 24V / 2.5A |
| Weight | 2.25 kg |
| Dimensions | 205 x 270 x 168mm (L x W x H) |
| Certifications | CE, RoHS |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch the 4-inch thermal transfer label printer demo for setup, features and daily operation guidance.
Get up and running in minutes. Covers unboxing, setup, media loading, and the first test print.
View ManualComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe S200 4inch Thermal Transfer Label Printer is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your S200 4inch Thermal Transfer Label Printer integration.
Thermal transfer and direct thermal printing in one device. TSPL-II and ZPL-II dual command compatibility ensures seamless integration with existing label design software, WMS, and ERP systems without driver changes.
Engineered for high-volume logistics, the S200 prints at 203dpi with a fast 200mm/s throughput, ideal for shipping labels, warehouse barcode tags, and retail price marking.
Handles continuous, gap, black mark, tag, care label, and wristband media from 20mm to 110mm wide. Supports wax, wax-resin, and resin ribbons up to 300m for labels resistant to heat, chemicals, and abrasion.
Standard 32MB FLASH and 32MB SDRAM handle most label formats. For complex layouts with graphics and vector fonts, upgrade to 2Gbit FLASH and 1Gbit SDRAM for large-format storage and faster processing.
USB, Ethernet, Serial, and USB Host are standard. The USB Host port connects barcode scanners and keyboards for standalone data input, while RS232 supports electronic scales for weight-based label printing.
Rotary cutter (500k cuts for care labels) or guillotine cutter (600k cuts for paper) with no-backcut technology. Optional 4.3 inch TFT LCD capacitive touchscreen enables standalone operation and real-time status monitoring.
The S200 4inch thermal transfer printer is tested and certified for compliance with international safety, electromagnetic, and environmental standards, suitable for deployment across global markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Restriction of Hazardous Substances compliant, ensuring the product is free from restricted hazardous materials in electrical and electronic equipment.
We provide flexible OEM and ODM services for the S200 4inch thermal transfer printer, helping partners build branded labeling hardware tailored to their market requirements.
Silk-screen logo, custom color finishes, and branded packaging to match your corporate identity.
Custom firmware adjustments, TSPL-II and ZPL-II command set compatibility, and SDK support for software integration teams.
Choose interface combinations and optional Bluetooth, WiFi, or Bluetooth+WiFi modules to match regional market demands and deployment scenarios.
Configure rotary or guillotine cutters with no-backcut technology, and optional 4.3 inch TFT LCD touchscreen for standalone operation.
Custom media sensor calibration for specific label materials, care labels, and wristband formats with optimized print quality profiles.
MOQ-flexible pricing, custom retail packaging, and standard 12-month warranty with remote technical support for global customers.
Compare the three 4inch thermal transfer printer models to find the right resolution, speed, and print width for your application.
| Model | Resolution | Print Speed | Print Width | Max Print Length | Best For |
|---|---|---|---|---|---|
| S200 | 203dpi | 200mm/s | 104mm | 4000mm | High-speed logistics labels, shipping tags, warehouse barcode labels |
| S300 | 300dpi | 150mm/s | 108mm | 3000mm | Detailed barcodes, small text labels, retail price tags, apparel care labels |
| S600 | 600dpi | 100mm/s | 105mm | 1000mm | Ultra-fine micro-text, compact 2D codes, pharmaceutical and electronics labels |

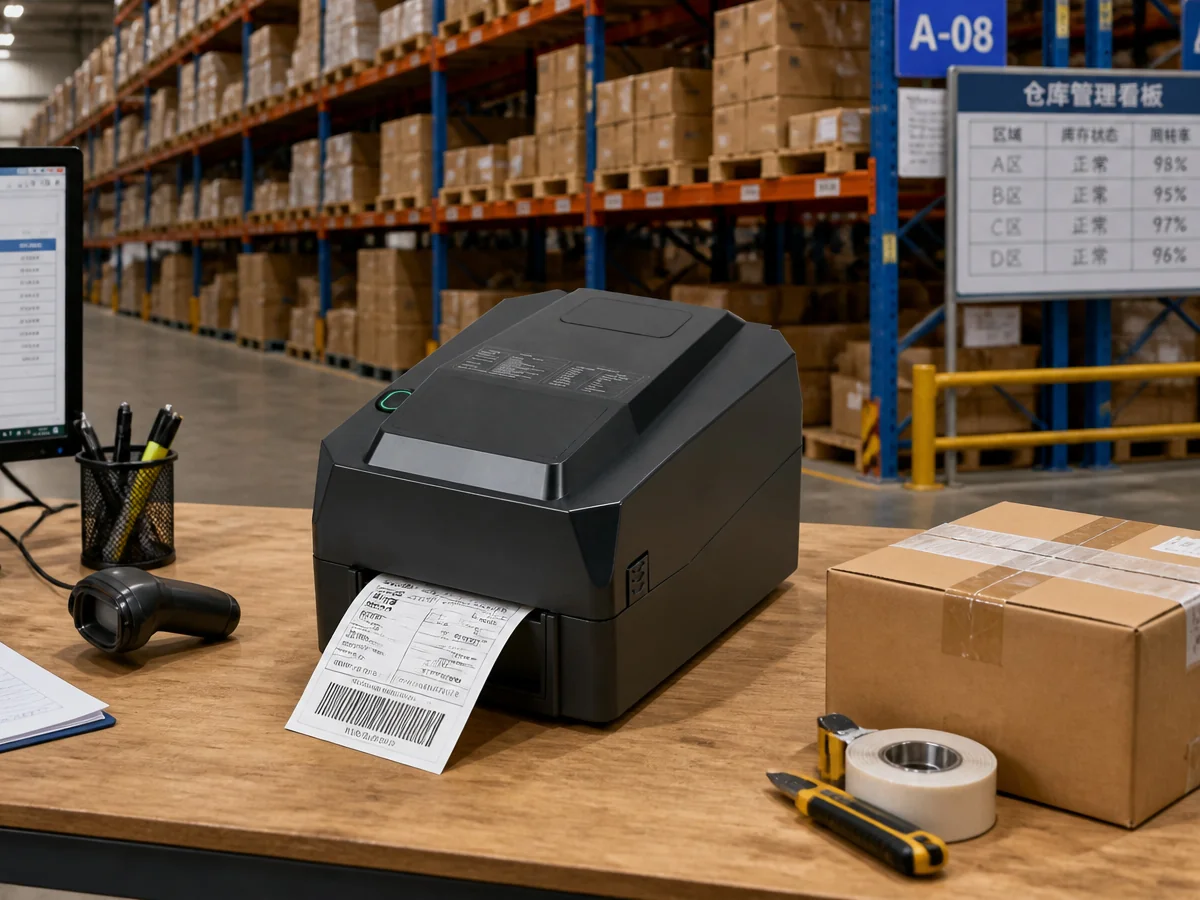

The S200 4inch thermal transfer printer is a versatile solution for businesses that need durable, long-lasting labels for logistics, pharmaceuticals, and warehouse management.
Generate shipping labels, barcode tags, and inventory labels at 200mm/s. Ethernet connectivity supports networked WMS with real-time inventory updates.
Explore Logistics Solutions →Print compliance labels with tiny text and 2D barcodes using the S200 200dpi model. Resin ribbon ensures chemical and moisture resistance.
Label PCBs, components, and finished products with heat-resistant resin labels. USB Host supports barcode scanners for scan-and-print workflows.
Contact our team for datasheets, model selection guidance, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right S200 4inch thermal transfer label printer for your business.
