Printer Series / Resin Sticker Printer

A600 Resin Sticker Printer 110mm With Auto Cutter

Since 2017Established
20,000㎡Factory Area
30+ CountriesExported
CE / FCC / RoHSCertified
3,000 UnitsMonthly Capacity

Product Overview

The A600 resin sticker printer 110mm With Auto Cutter is a thermal printer featuring 600DPI, 100mm/s Speed.

This 4-inch resin sticker printer supports a broad selection of label media to satisfy diverse manufacturing identification demands. It seamlessly works with coated paper, synthetic paper, durable polyester (PET) asset labels and flexible vinyl labels. Print crisp, long-lasting barcodes, serial numbers and text for production work orders, warehouse inventory tags, equipment asset marking, curved pipe & valve signage, and component traceability. Built to withstand continuous operation on the production floor, it delivers stable, clear labeling for end-to-end manufacturing tracking workflows.

600DPI 100mm/s Speed 105mm Print Width FLASH 32MB + SDRAM 32MB

📊Performance

ModelsA600
Print MethodThermal Transfer / Direct Thermal
Resolution600dpi
Print Speed100mm/s
Print Width105mm
Print Length1000mm
Command SetTSPL-II, ZPL-II Compatible
Memory (Standard)FLASH 32MB + SDRAM 32MB
Memory (Optional)FLASH 2Gbit + SDRAM 1Gbit

🖨Printing & Media

Media TypesContinuous, Gap, Black Mark, Tag, Coated Paper, Synthetic Paper, PET Asset Labels, Vinyl Labels
Media Width20 - 110mm
Media Thickness0.06mm - 1.5mm
Roll Outer DiameterMax. 127mm
Core SizeMax. 127mm
Ribbon TypesWax, Wax-Resin, Resin
Ribbon LengthMax. 300m
Ribbon Core25.4mm
Ribbon Width30 - 110mm (outward winding)
Media HandlingTear-Off, Front Exit

Connectivity

Interfaces (Standard)USB 2.0 Type-B + Ethernet + Serial (RS232) + USB Host
Interfaces (Optional)Bluetooth, WiFi, Bluetooth+WiFi
USB HostBarcode scanner, keyboard, BAS program download
RS232Electronic scale, weight-based printing
SensorsTransmissive and Reflective media sensor, Thermistor printhead sensor
ButtonsFeed Button / Pause Button
ProtectionOverheat, Gap Detection, Black Mark Detection, Cover Open Detection, Paper-Out Alert, Cutter Error

🖥Hardware & Build

1D BarcodeCODE128, CODE39, CODE93, UPC-A, UPC-E, EAN-8, EAN-13, Codabar, Interleaved 2 of 5, MSI, PLESSEY, ITF14, TELEPEN, LOGMARS
2D BarcodeQR Code, PDF417, DataMatrix, Maxicode, MicroPDF417, Aztec, Codablock, Code49
GraphicsMonochrome PCX, BMP downloadable to FLASH/DRAM
Character SetSingle-byte FONT 0 to FONT 8, UTF-8, Vector Fonts (Arabic, Thai, Hindi, Turkish, etc.)
Scaling / Rotation1-10x horizontal/vertical scaling, 0/90/180/270 degree rotation
CutterStandard: Rotary Cutter (500k cuts) / Guillotine Cutter (600k cuts, 80g paper)
Display (Optional)4.3 inch TFT LCD capacitive touchscreen, 480x800, 16-bit RGB, TF card slot
Operating Conditions5-40°C, 25-85% RH
Storage Conditions-40-60°C, 10-90% RH
Power SupplyDC 24V / 2.5A
Weight2.5 kg
Dimensions205 x 270 x 168mm (L x W x H)

Core Product Features

A600 resin sticker printer front view with standard auto cutter

Standard Auto Cutter

A standard rotary cutter rated for 500,000 cuts handles thin adhesive labels, while the guillotine cutter rated for 600,000 cuts manages thicker stock. Both feature no-backcut technology and anti-static brushes for clean, jam-free cutting of every manufacturing label.

  • Rotary cutter rated for 500,000 cuts (thin labels)
  • Guillotine cutter rated for 600,000 cuts (80g paper)
  • No-backcut technology with anti-static brushes

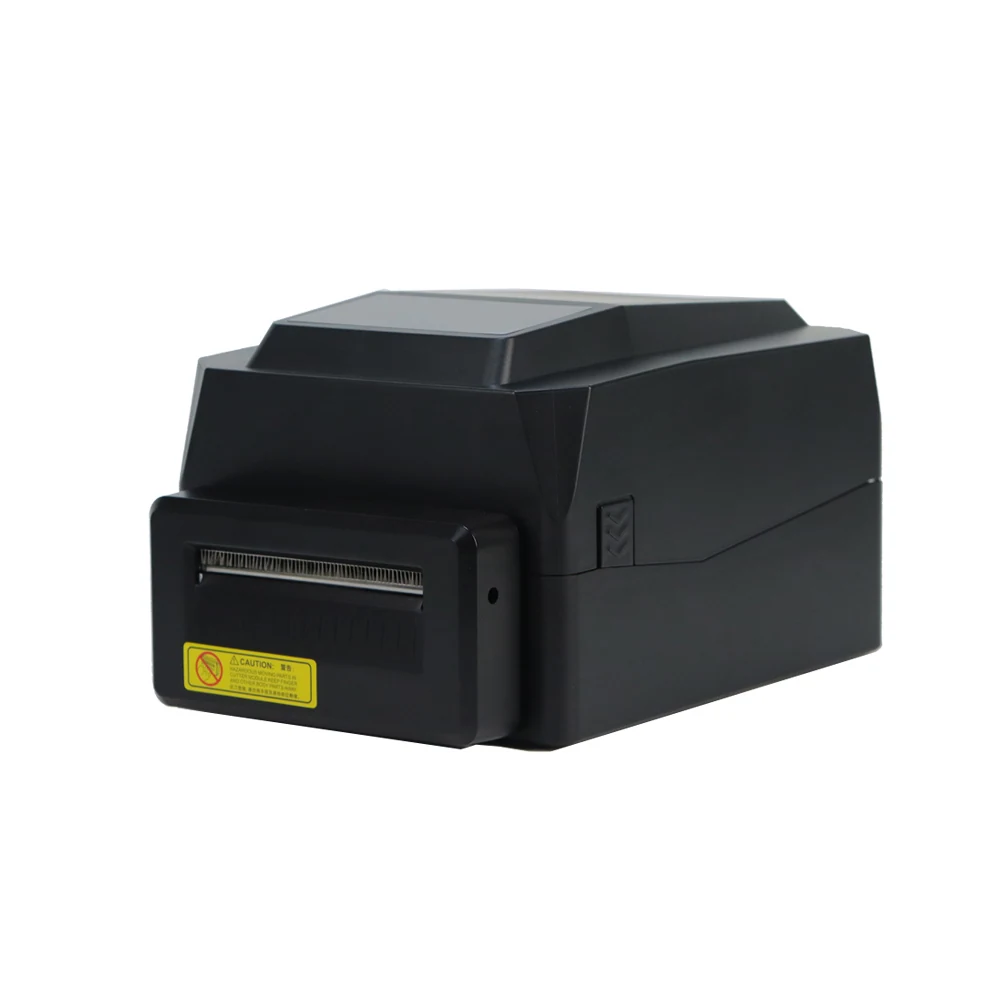

A600 resin sticker printer right view showing 600dpi precision print head

600dpi Ultra-Fine Resolution

Produces ultra-fine 600dpi output at 100mm/s with a 105mm print width and 1000mm max print length. Ideal for micro-text serial numbers, compact 2D DataMatrix codes, and high-density barcodes on small asset tags and component labels.

  • 600dpi resolution for micro-text and tiny 2D codes
  • 100mm/s print speed with 105mm width
  • Perfect for serial numbers, asset tags, and traceability labels

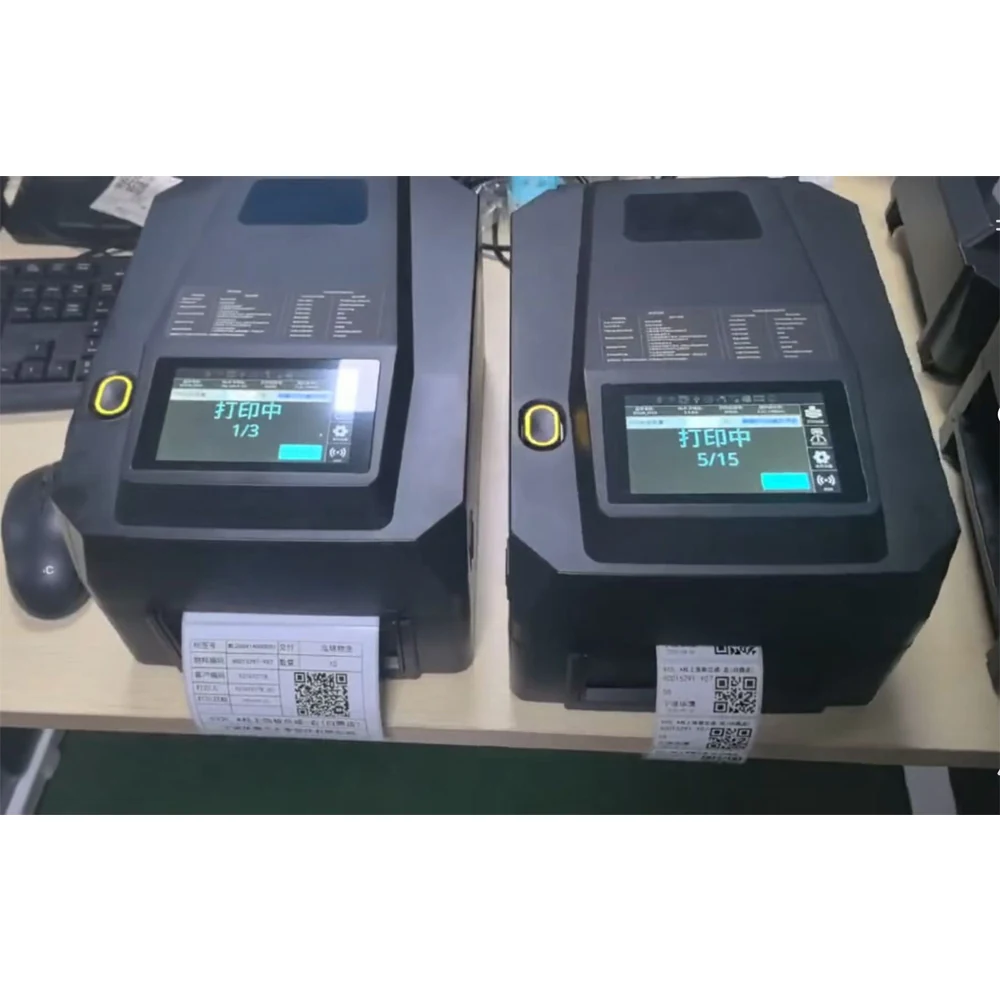

A600 resin sticker printers with optional 4.3 inch LCD touchscreen

Optional LCD Touchscreen

An optional 4.3 inch industrial TFT LCD capacitive touchscreen (480x800 resolution, 16-bit RGB) enables standalone operation on the production floor. Select label formats, adjust print density, monitor status, and initiate print jobs without a connected PC.

  • 4.3 inch TFT LCD capacitive touchscreen (480x800)
  • Standalone operation without connected PC
  • Label format selection and real-time status monitoring

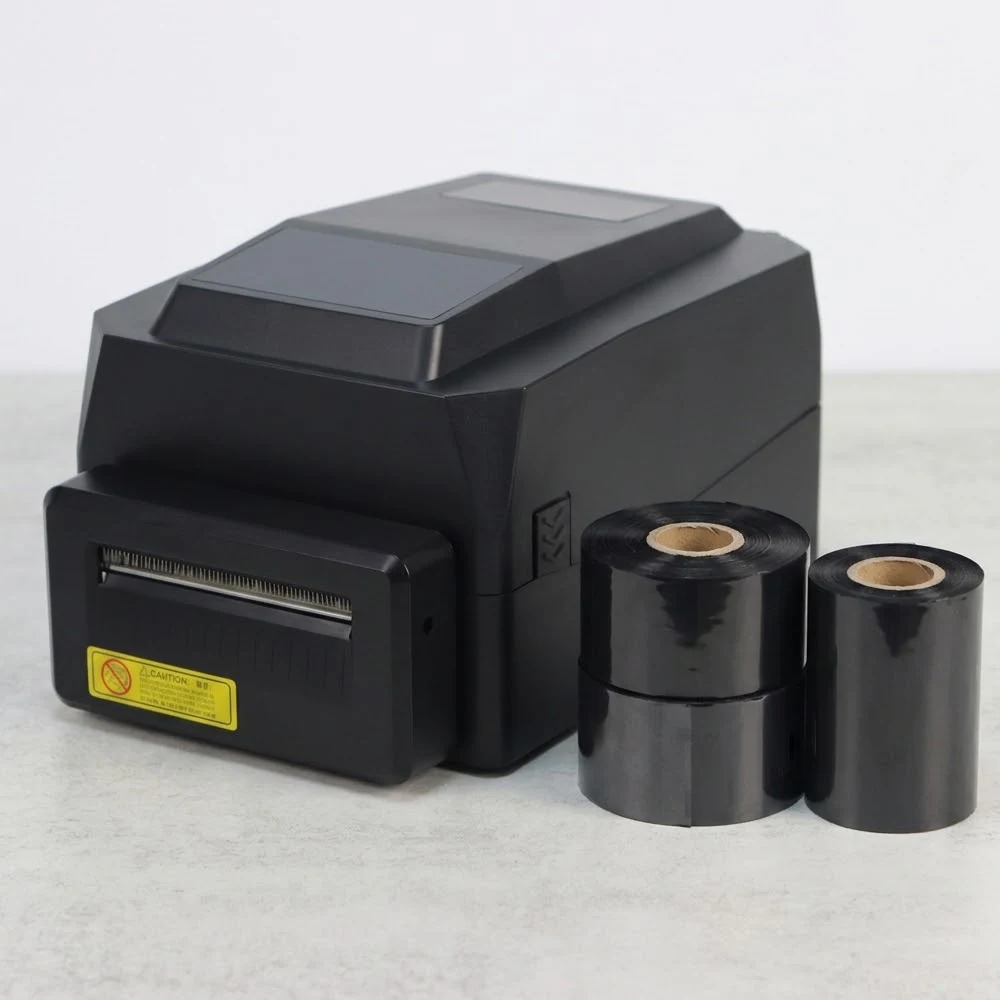

A600 resin sticker printer with resin ribbon rolls for durable manufacturing labels

Ribbon Types & Label Media

Supports a broad range of manufacturing label media including coated paper, synthetic paper, durable polyester (PET) asset labels, and flexible vinyl. Wax, wax-resin, and resin ribbons up to 300m produce labels that resist chemicals, abrasion, and outdoor exposure.

  • Coated paper, synthetic paper, PET asset labels, vinyl
  • Wax, wax-resin, and resin ribbons (up to 300m)
  • Chemical, abrasion, and weather-resistant output

Model Comparison Guide

Compare the A-series thermal transfer printer models to find the right resolution, speed, and print width for your manufacturing and industrial labeling needs.

Model with cutter Resolution Print Speed Print Width Max Print Length Best For
A200 Standard 203dpi 200mm/s 104mm 4000mm High-volume price tags, shelf labels, and retail barcode labels
A300 Standard 300dpi 150mm/s 108mm 3000mm Detailed care labels, small text, apparel brand tags, garment identification
A600 Standard 600dpi 100mm/s 105mm 1000mm Ultra-fine 600dpi asset tags, serial number labels, component traceability, pipe & valve signage

Application Business Scenarios

The A600 resin sticker printer is engineered for manufacturing operations, ideal for producing durable asset tags, production work order labels, warehouse inventory tags, and component traceability labels on the factory floor and throughout the supply chain.

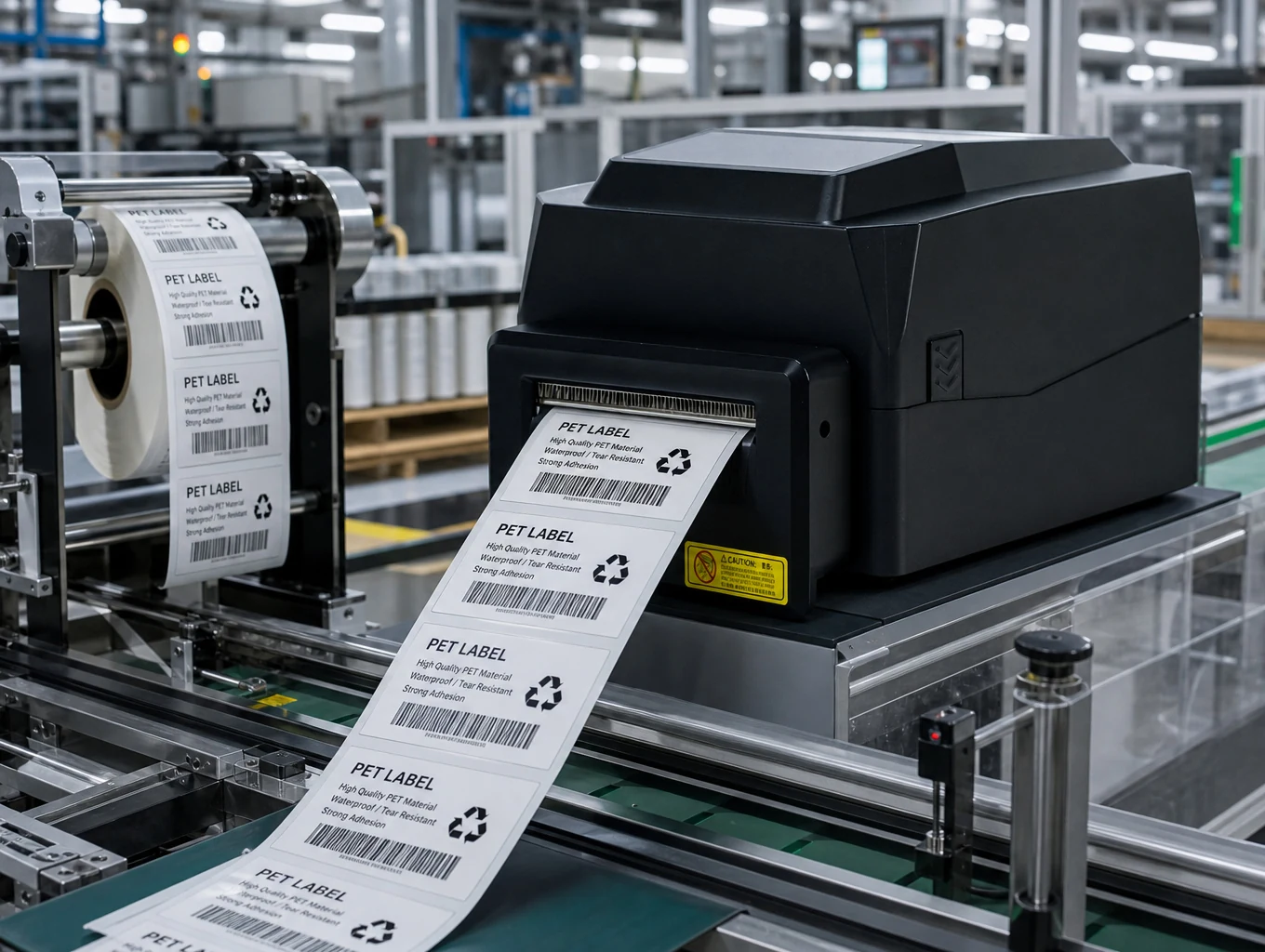

A600 resin sticker printer producing PET asset labels on a manufacturing production line

Production Work Orders

Print crisp work order labels, batch tickets, and routing cards at 600dpi resolution. Resin ribbon ensures labels survive oil, coolant, and handling on busy production lines.

Asset & Equipment Tracking

Produce durable PET asset tags and vinyl equipment labels with scuff-resistant resin output. Perfect for tool cribs, calibration tracking, and fixed asset inventories.

Explore Manufacturing Solutions →

Frequently Asked Questions

What are the key specifications of the A600 resin sticker printer?
The A600 resin sticker printer delivers ultra-fine 600dpi resolution at 100mm/s, with a 105mm maximum print width and 1000mm maximum print length — built for micro-text serial numbers, compact 2D DataMatrix codes, and high-density barcodes on asset tags and component labels. It features a compact 205x270x168mm desktop footprint (2.5kg), standard USB+Ethernet+Serial+USB Host interfaces, and full manufacturing media compatibility including coated paper, PET asset labels, and vinyl.
What print methods and command sets does the A600 resin sticker printer support?
The printer supports both thermal transfer and direct thermal printing methods. It is compatible with TSPL-II and ZPL-II command sets, ensuring seamless integration with existing label design software, warehouse management systems, and ERP platforms. Standard memory is 32MB FLASH and 32MB SDRAM, expandable to 2Gbit FLASH and 1Gbit SDRAM for complex label formats with graphics and vector fonts.
What media types and ribbon options are supported for manufacturing labels?
The printer supports continuous, gap, black mark, tag, coated paper, synthetic paper, PET asset label, and vinyl media types with widths from 20mm to 110mm. Media thickness ranges from 0.06mm to 1.5mm, with a maximum roll outer diameter of 127mm. For thermal transfer mode, it supports wax, wax-resin, and resin ribbons with a maximum length of 300m, core size of 25.4mm, width of 30-110mm, and outward winding configuration — resin ribbon ensures manufacturing labels resist chemicals, abrasion, and outdoor exposure.
What interface and connectivity options are available?
Standard interfaces include USB 2.0 Type-B, Ethernet, Serial (RS232), and USB Host. The USB Host port supports barcode scanners, keyboards, and BAS program downloads for scan-triggered printing. The RS232 port connects to electronic scales for weight-based printing. Optional wireless modules include Bluetooth, WiFi, or Bluetooth+WiFi combinations for mobile and networked deployments.
Does the A600 resin sticker printer have a standard cutter and optional display?
Yes. A standard rotary cutter rated for 500,000 cuts handles thin adhesive labels, and a guillotine cutter rated for 600,000 cuts manages 80g paper. Both feature no-backcut technology and anti-static brushes. An optional 4.3 inch industrial TFT LCD capacitive touchscreen (480x800 resolution, 16-bit RGB) enables standalone operation, label format selection, and real-time status monitoring without a connected PC.
What is the warranty and after-sales policy for the A600 resin sticker printer?
The A600 resin sticker printer comes with a standard 12-month warranty covering manufacturing defects. For full warranty, return, replacement, and technical support terms, please read our after-sales policy.

Need a Customized Resin Sticker Printer Solution?

Contact our team for datasheets, model selection guidance, customization options, pricing, and volume discounts. We are ready to help you configure the right resin sticker printer for your manufacturing, asset tracking, or industrial labeling operations.
