The S1 Tablet POS 10.1 Inch Horizontal and Vertical Display is a POS terminal featuring 1200 × 2000, OS Android 12 / 13.
With up to 6GB RAM, 128GB storage, dual-band Wi-Fi, 4G LTE, Bluetooth 5.0, GNSS, and a docking station that provides 3xUSB and Gigabit LAN, the S1 Tablet POS integrates smoothly with external barcode scanners, kitchen printers, and customer-facing peripherals. CE, FCC and RoHS certified, with full OEM and ODM customization available for partners who need branded POS hardware solutions.
| Model | S1 |
| Type | Tablet POS / Android Cash Register |
| Operating System | Android 12 / 13 |
| Processor | MediaTek MT6769 Octa-Core (Cortex-A75 @2.0GHz + Cortex-A55 @1.8GHz) |
| Memory | 2GB / 4GB / 6GB RAM |
| Storage | 32GB / 64GB / 128GB eMMC |
| TF Card | MicroSD supported, up to 128GB |
| SIM | Nano SIM (4G LTE) |
| Main Display | 10.1 inch, 1200 × 2000 IPS, Capacitive 5-Point In-Cell Touch |
| Resolution | 1200 × 2000 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac 2.4G / 5GHz Dual-Band |
| Bluetooth | BT 5.0 |
| GNSS | GPS / GLONASS / BDS / Galileo |
| 4G Network | LTE-FDD B1/B3/B5/B7/B8/B20/B28; LTE-TDD B38/B39/B40/B41; WCDMA B1/B5/B8; GSM 850/900/1800/1900 MHz |
| Camera | Front 5MP, Rear 8MP / 13MP (Auto-Focus) |
| Battery | 7500mAh (3.8V), Removable |
| Buttons | Power ×1, VOL+ ×1, VOL- ×1, Function Key ×1 |
| Speaker | Built-in Speaker |
| I/O Ports | 1×Type-C (PD), 3×USB 2.0, 1×RJ45 Gigabit Ethernet, 1×3.5mm Audio (via dock) |
| Docking Station | Magnetic docking base with hidden charging, 3×USB + 1×Gigabit LAN, strong magnetic suction anti-theft |
| Power | 5V/3A Type-C PD or docking station powered |
| Color | Black / White (Optional) |
| Dimensions | Tablet Approx. 240 × 158 × 11 mm |
| Weight | Approx. 650 g (tablet only) |
| Certifications | CE, FCC, RoHS |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch how the S1 Tablet POS 10.1 Inch Horizontal and Vertical Display is set up and used in real workflows. Visit our Operation Videos center for the full product playlist.
Watch VideosGet up and running in minutes. Covers unboxing, setup, media loading, and the first test print.
View ManualComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe S1 Tablet POS 10.1 Inch Horizontal and Vertical Display is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your S1 Tablet POS 10.1 Inch Horizontal and Vertical Display integration.
Powered by MediaTek MT6769 eight-core processor with up to 6GB RAM and 128GB storage, the S1 Tablet POS runs Android 12/13 for fast, modern POS software compatibility and smooth multitasking.

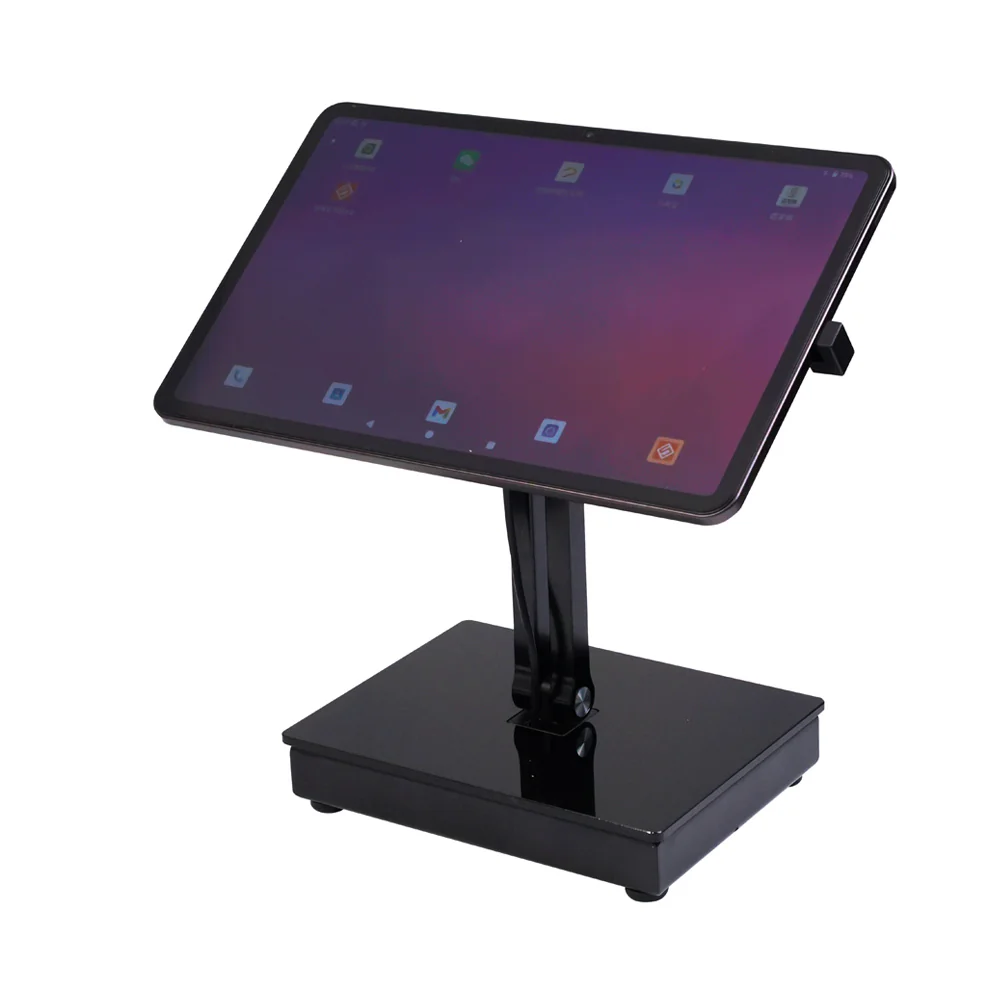

10.1-inch 1200×2000 IPS capacitive 5-point in-cell touch screen delivers sharp menus, clear order details, and smooth touch response for tableside ordering and self-checkout.
Hidden charging magnetic docking base with 3×USB and 1×Gigabit LAN, strong magnetic suction anti-theft design, supports tabletop and wall-mount deployment in restaurants and retail.
7500mAh removable battery, dual-band Wi-Fi, 4G LTE, BT 5.0 and GNSS ensure reliable connectivity for pop-up stores, food trucks, and mobile checkout counters.
Front 5MP and rear 8/13MP cameras support 1D barcode and 2D QR code scanning, turning the tablet into a flexible scanning terminal without extra hardware.

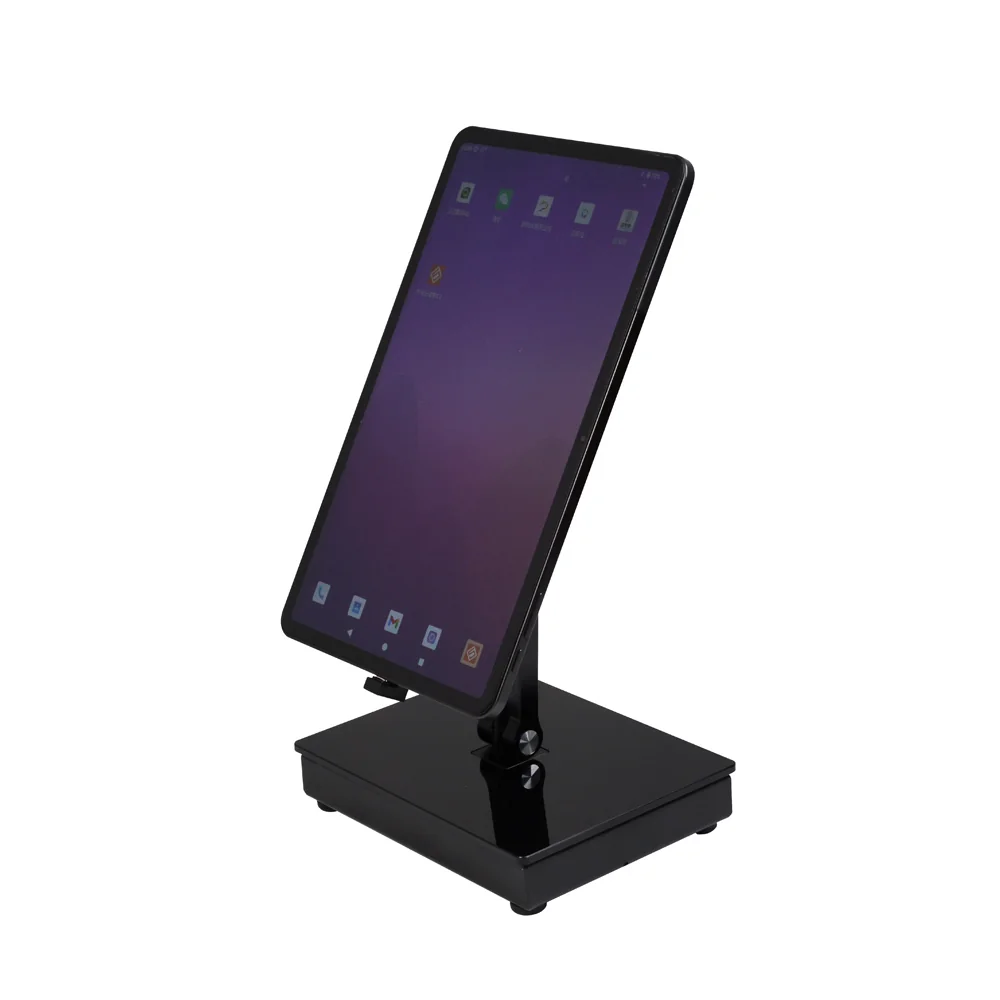

Horizontal and vertical orientation, lightweight tablet form factor, and optional customer-facing stand make the S1 ideal for fine dining, cafes, casual restaurants, and boutique retail.
The S1 Tablet POS is tested and certified for hardware compliance, suitable for export and deployment in multiple international markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Meets United States Federal Communications Commission standards for electromagnetic interference and radio frequency emissions.
We provide flexible OEM and ODM services for the S1 Tablet POS, helping partners build branded all-in-one cash register hardware for their markets.
Silk-screen logo on the housing, custom color finishes, and branded packaging to match your corporate identity.
Custom Android firmware, pre-installed POS applications, kiosk mode lockdown, and SDK support for software teams.
Optional I/O port configurations, docking station customization, and add-on modules (scanner, customer display, NFC) on request.
Optional RAM/Storage tiers, regional LTE band selection, and color variants for global distribution.
MOQ-flexible pricing, custom retail boxes, and accessories bundles for bulk orders.
Standard 12-month warranty, remote technical support, and spare parts service for global customers.
Compare the S1 Tablet POS with other Android cash registers in our lineup to find the right fit for your business.
| Model | OS | Display | Processor | Connectivity | Best For |
|---|---|---|---|---|---|
| S1 Recommended | Android 12/13 | 10.1" IPS | MediaTek MT6769 Octa-Core | Wi-Fi / BT 5.0 / 4G LTE / LAN (dock) | Restaurant self-ordering, cafes, tableside POS |
| M55 POS Android Terminal | Android 13 | 15.6" FHD | Qualcomm QCM6125 Octa-Core | Wi-Fi 5 / BT 5.0 / 4G LTE | Restaurants, retail, mobile checkout |
| D1 Android POS Terminal | Android 13 | 10.1" multi-touch | Octa-Core | Wi-Fi / BT / 4G / NFC | Compact retail, mobile POS, pop-up stores |
| M60 Android POS | Android 13 | 15.6" FHD | Qualcomm QCM6125 Octa-Core | Wi-Fi 5 / BT 5.0 / 4G LTE | High-volume retail and restaurant chains |

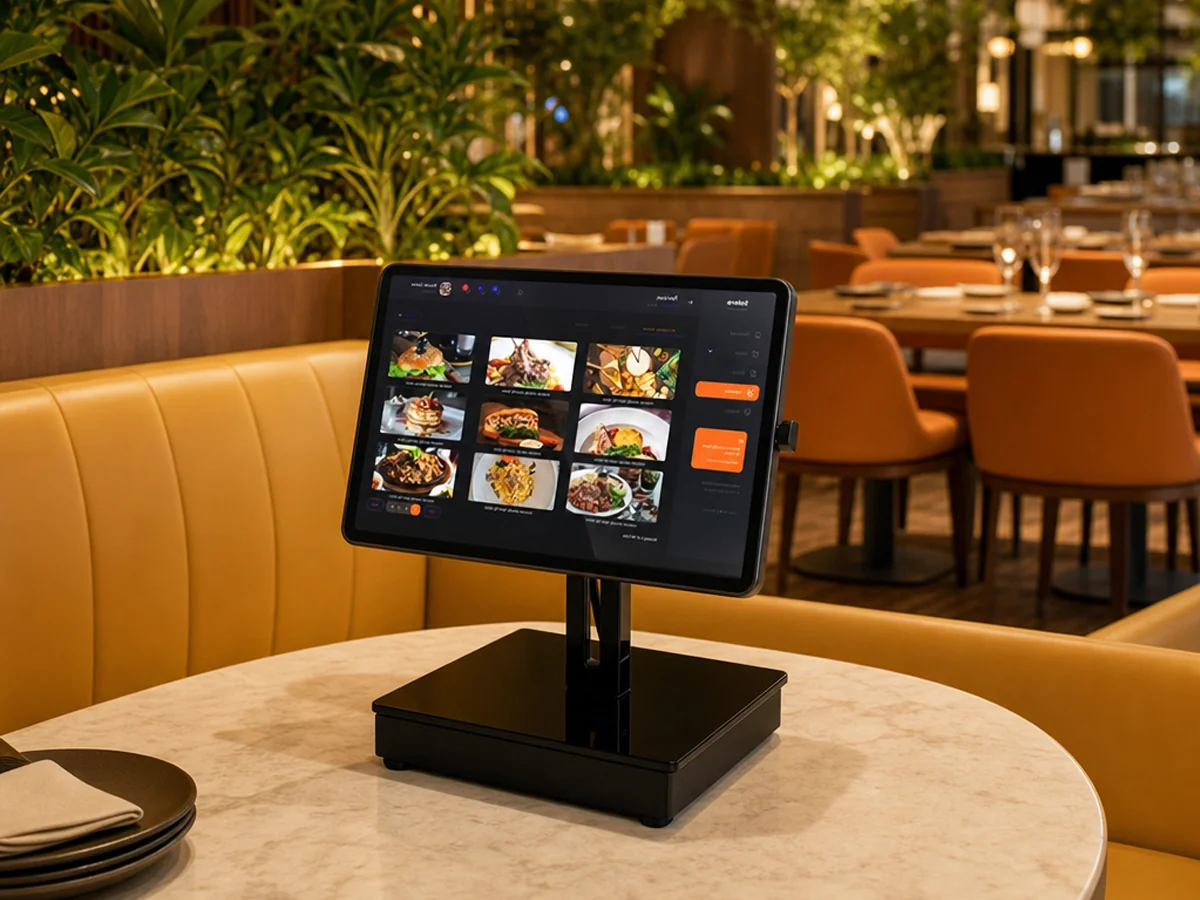

The S1 Tablet POS is a versatile 10.1 inch Android tablet POS system suitable for restaurant self-ordering, cafes, and retail checkout environments that demand flexible, mobile-friendly Android performance with a magnetic docking station.
Run modern Android POS apps for order entry, kitchen routing, and table management. The 10.1" IPS screen displays menus with rich imagery for dine-in and takeaway.
Explore Restaurant Solutions →Stable Android 13 platform with 5xUSB and RS232 ports supports barcode scanners, scales, and customer-facing displays for retail checkout counters.
Built-in 4G LTE, GNSS, and dual-band Wi-Fi make the S1 ideal for food trucks, market stalls, and pop-up retail where wired network is unavailable.
Modern slim-bezel design and all-aluminium stand fit the aesthetic of coffee shops, bakeries, and boutique stores where the terminal is part of the brand experience.
The 10.1" IPS screen and magnetic docking station support check-in, billing, and ordering at hotel front desks and lobbies.
Explore Hospitality Solutions →Contact our team for datasheets, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right Android tablet POS for your business.
