The M2 11.6 Inch Windows Horizontal All-in-One POS Register is a POS terminal featuring OS Windows 10, 8GB RAM.
Powered by an Intel Core i5 4th generation processor with 8GB RAM and 128GB SSD, the M2 runs Windows 10 OS and supports mainstream retail and catering POS software. Dual-frequency Wi-Fi, Bluetooth 5.0, and 1000M Ethernet provide reliable connectivity, while the metal die-cast aluminum housing ensures long-term durability in busy commercial environments.
| Model | M2 |
| Operating System | Windows 10 |
| Processor | Intel Core i5 4th Generation (Standard) / Celeron J6412 Quad-core (Optional) |
| Memory | 8GB RAM |
| Storage | 128GB SSD |
| Main Display | 11.6 inch BOE Capacitive Touchscreen, 1366x768, 10-point G+G |
| Customer Display | 4.3 inch, 800x480 |
| Built-in Printer | 80mm Thermal Receipt Printer with Auto Cutter, 79.5mm (±0.5mm) paper width, 150mm/s |
| Scan Window | 1D/2D Barcode Scanner, 60° horizontal / 45° vertical field of view |
| Speaker | 4Ω 2W |
| Wi-Fi | Dual-frequency 2.4G / 5G |
| Bluetooth | Bluetooth 5.0 |
| Ethernet | 1000M LAN |
| USB Ports | 4x USB 2.0, 2x USB 3.0 |
| COM Port | 1x COM |
| Cash Drawer | 1x RJ11 |
| Video Output | 1x HDMI |
| Audio | 1x LINE-OUT |
| Power Input | DC 12V / 7.5A |
| Power Output | 100-240V |
| Operating Temperature | -10°C to 60°C, 20% - 80% humidity |
| Storage Temperature | -20°C to 75°C, 20% - 80% humidity |
| Housing Material | Metal die-cast aluminum |
| Color | Black |
| Dimensions | 300 x 360 x 100mm (L x W x H) |
| Weight | 4.3 kg (Package 6 kg) |
| Package Dimension | 430 x 360 x 200mm (L x W x H) |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch how the M2 11.6 Inch Windows Horizontal All-in-One POS Register is set up and used in real workflows. Visit our Operation Videos center for the full product playlist.
Watch VideosGet up and running in minutes. Covers unboxing, setup, media loading, and the first test print.
View ManualComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe M2 11.6 Inch Windows Horizontal All-in-One POS Register is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your M2 11.6 Inch Windows Horizontal All-in-One POS Register integration.
Intel Core i5 4th generation processor with 8GB RAM and 128GB SSD runs Windows 10 OS, supporting mainstream retail and catering POS software with smooth multitasking.
11.6 inch BOE main capacitive touchscreen (1366x768) with 10-point G+G touch plus 4.3 inch customer-facing display for order confirmation and advertising.

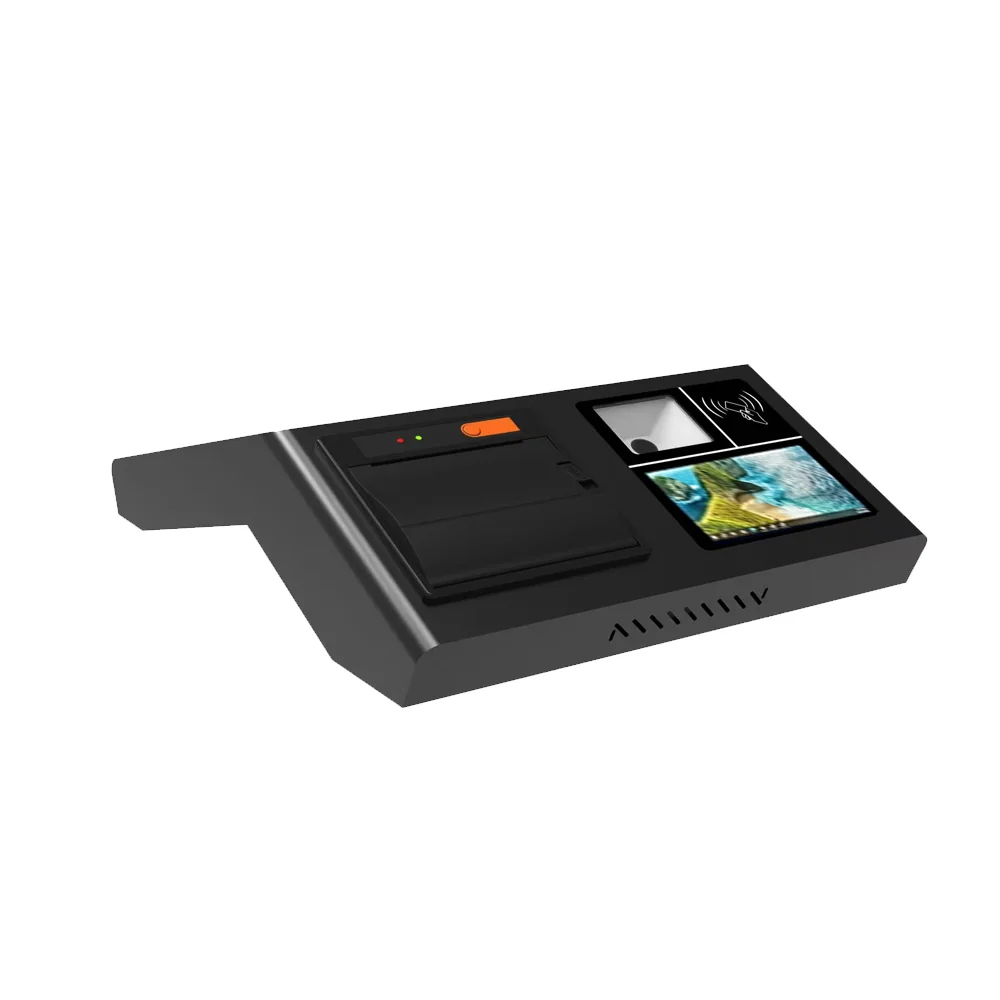

Integrated 80mm thermal receipt printer with auto cutter, 79.5mm paper width, and 150mm per second print speed eliminates the need for an external printer.
Integrated scan window supports common 1D and 2D barcodes with 60° horizontal and 45° vertical field of view, enabling fast product scanning at checkout.
4x USB 2.0, 2x USB 3.0, 1x COM, 1x LAN RJ45, 1x RJ11 cash drawer, 1x HDMI, 1x LINE-OUT plus dual-frequency Wi-Fi, Bluetooth 5.0, and 1000M Ethernet.

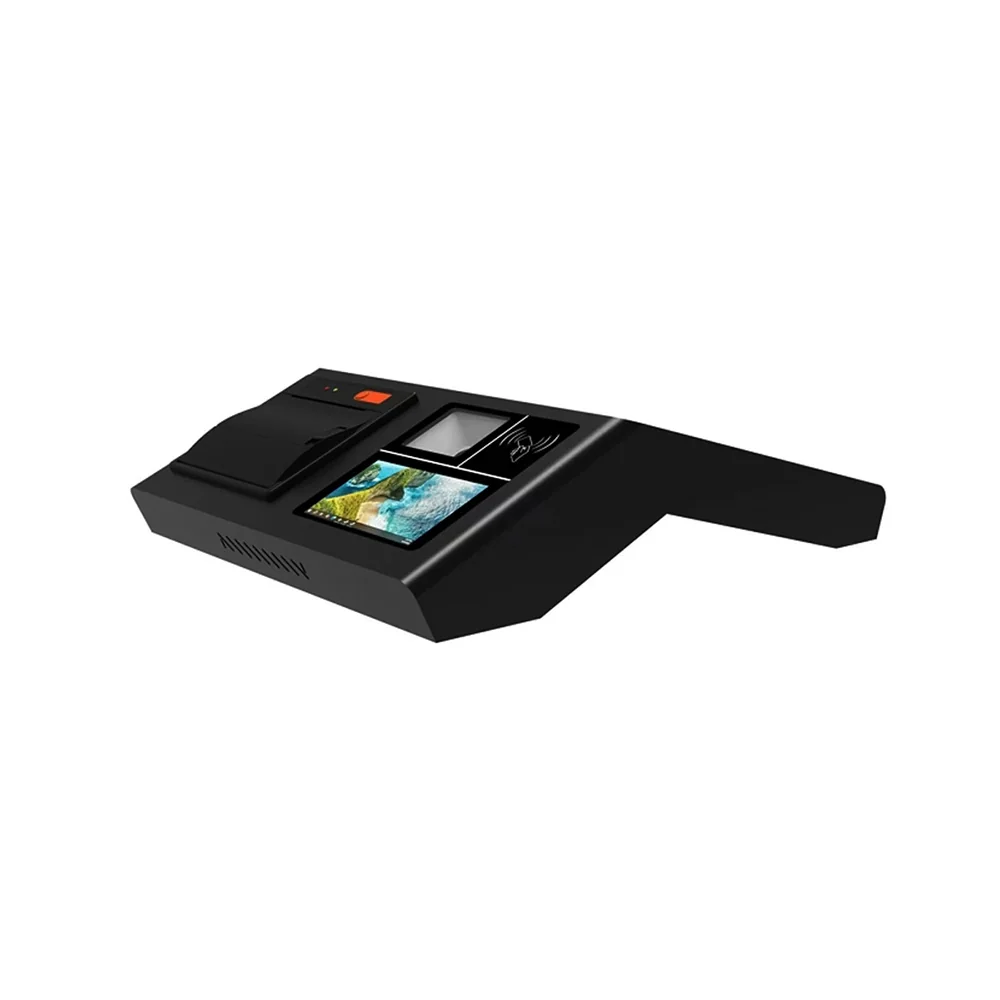

Durable metal die-cast aluminum housing in black finish, 300x360x100mm compact form factor, 4.3kg lightweight design fits any countertop environment.
The M2 all-in-one POS register is manufactured under strict quality control and is built for stable long-term deployment in commercial retail and catering environments worldwide.
Built with metal die-cast aluminum housing and BOE-grade touch panel for industrial-grade durability and consistent product quality.
Full OEM/ODM services including custom logo, firmware, packaging, and configuration to support global distribution partners.
We provide flexible OEM and ODM services for the M2 all-in-one POS register, helping partners build branded cash register solutions for their markets.
Silk-screen logo, custom color finishes, and branded packaging to match your corporate identity.
Choose between Intel Core i5 4th gen or Celeron J6412 quad-core processor to match your performance and budget requirements.
POS software pre-installation, driver configuration, and OS image customization for plug-and-play deployment.
Optional memory, storage, and I/O port configurations, plus regional power adapter plug types for global distribution.
MOQ-flexible pricing, custom retail boxes, and accessories bundles for bulk chain-store deployment.
Standard 12-month warranty, remote technical support, and spare parts service for global customers.
Compare the M2 all-in-one POS register with other cash register models in our lineup to find the right fit for your business.
| Model | OS | Screen | Printer | Best For |
|---|---|---|---|---|
| M2 | Windows 10 | 11.6" + 4.3" Dual | 80mm Built-in | Restaurants, retail, small supermarkets |
| M60W Windows POS | Windows 10 | 15.6" + Optional 15.6" Customer Display | 80mm Built-in | High-volume retail and chain stores |
| D1 Android Terminal | Android 13 | 10.1" Single | 80mm Built-in | Mobile checkout, small retail |
| M60 Android POS | Android 13 | 15.6" + Optional 15.6" Customer Display | 80mm Built-in | High-volume retail and restaurants |
The M2 11.6 inch Windows all-in-one POS register is a versatile checkout solution for restaurants, retail stores, and small commercial environments.
Compact 11.6 inch dual-screen design fits crowded restaurant counters. Built-in 80mm printer handles order tickets and customer receipts without external hardware.
Windows 10 OS supports mainstream retail POS software. The 4.3 inch customer display builds trust with real-time price and total visibility during checkout.
Explore Retail Solutions →Fast built-in 1D/2D barcode scan window accelerates product scanning. Dual-frequency Wi-Fi and 1000M Ethernet ensure stable online transactions at busy hours.
Metal die-cast aluminum housing withstands daily heavy use. HDMI video output supports a larger secondary advertising display for promotional content.
Sleek 4.3kg compact form factor and 300x360x100mm footprint fits boutique counters. Bluetooth 5.0 enables wireless barcode scanner and peripheral pairing.
Contact our team for datasheets, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right all-in-one POS register for your business.
