The D1 Android Terminal With 10.1 Inch HD Touchscreen is a POS terminal featuring OS Android 13, CPU MTK MT8766 Octa-Core 2.0GHz.
With full wireless connectivity including 4G LTE, WiFi, Bluetooth 5.0, and GPS, the D1 adapts to any business environment. An optional 5600mAh battery removes the power cord constraint, making it ideal for mobile food trucks, pop-up markets, and outdoor events. The integrated NFC, IC card, and magnetic stripe reader supports multiple payment methods, while dual SIM slots ensure connectivity redundancy for multi-location chain operations.
| Model | D1 |
| Display | 10.1 inch HD (800x1280) IPS Touchscreen |
| Customer Display | LED Customer Display |
| Operating System | Android 13 |
| Processor | MTK MT8766 Octa-Core 2.0GHz |
| Memory | 4GB RAM |
| Storage | 32GB |
| Printer | Built-in 58mm / 80mm Thermal Printer with Auto-Cutter |
| Barcode Scanner | 5MP Camera + 1D/2D Infrared Scanner Window |
| Card Reader | NFC, IC Card, Magnetic Card (ISO/IEC 14443 A&B) |
| Card Slots | SIM x2 + SAM x2, Micro SD |
| Wireless | 4G / 3G / 2G, WiFi, Bluetooth 5.0, GPS |
| Interfaces | Type-C Debug, USB x4, Mini USB, RJ11 Serial, RJ12 Cash Drawer, RJ45 LAN |
| Battery (Optional) | 5600mAh / 3.7V Li-ion |
| Dimensions | 262 x 363.5 x 91.5mm (L x W x H) |
| Weight | 1.44 kg |
| Certifications | CE, FCC, RoHS |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch how the D1 Android Terminal With 10.1 Inch HD Touchscreen is set up and used in real workflows. Visit our Operation Videos center for the full product playlist.
Watch VideosGet up and running in minutes. Covers unboxing, setup, media loading, and the first test print.
View ManualComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe D1 Android Terminal With 10.1 Inch HD Touchscreen is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your D1 Android Terminal With 10.1 Inch HD Touchscreen integration.

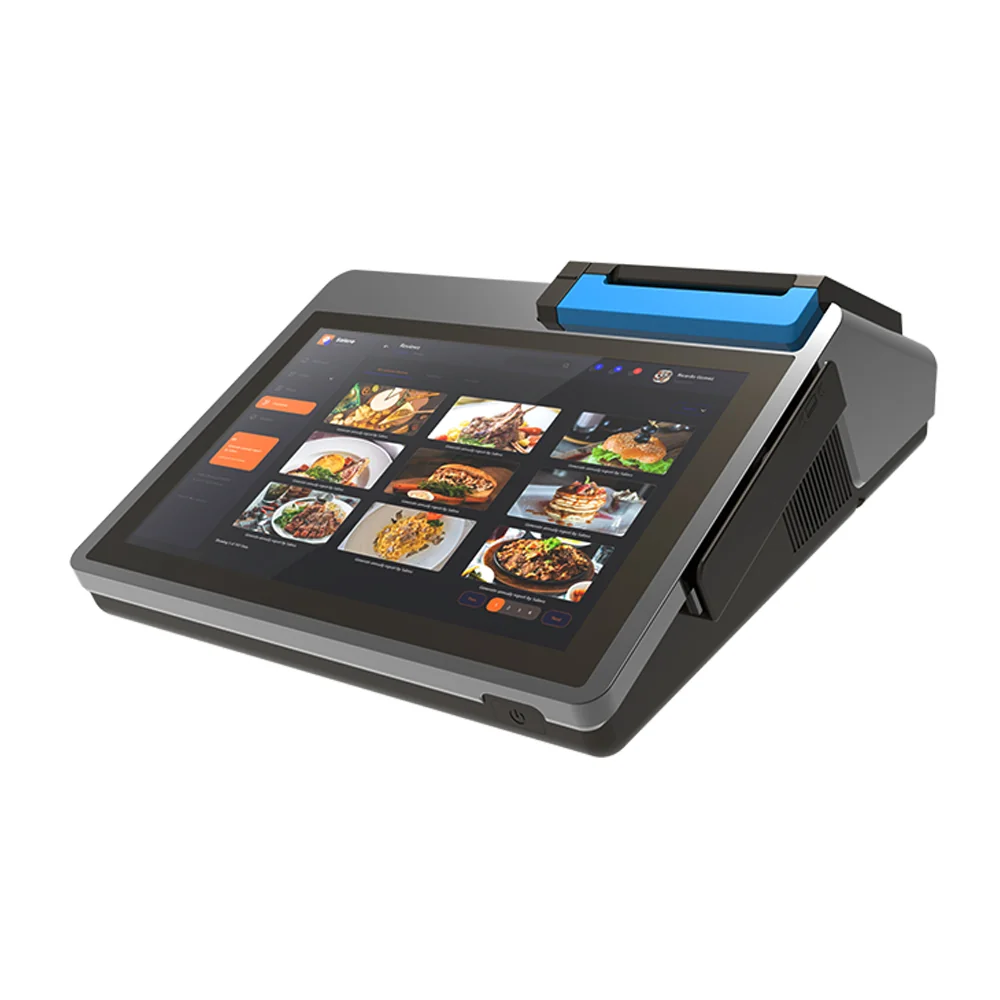

Touchscreen, thermal printer, barcode scanner, NFC card reader, and 4G connectivity are integrated into one compact 1.44kg device, eliminating cable clutter and separate peripheral modules.

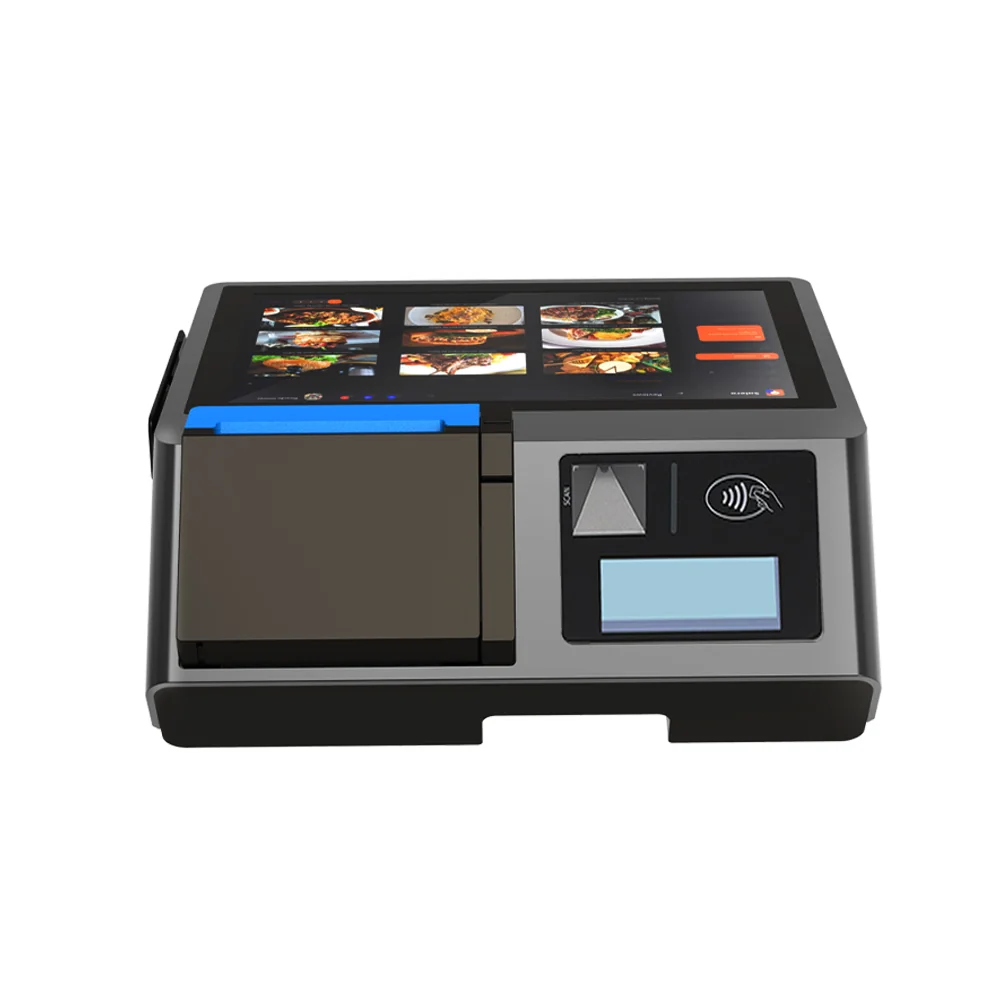

The 10.1 inch HD IPS operator touchscreen plus LED customer display accelerates checkout workflows by showing order details to customers while staff process transactions on the main screen.
A built-in 58mm or 80mm thermal printer with auto-cutter prints receipts and order tickets instantly, eliminating external printing hardware and cable clutter at the counter.

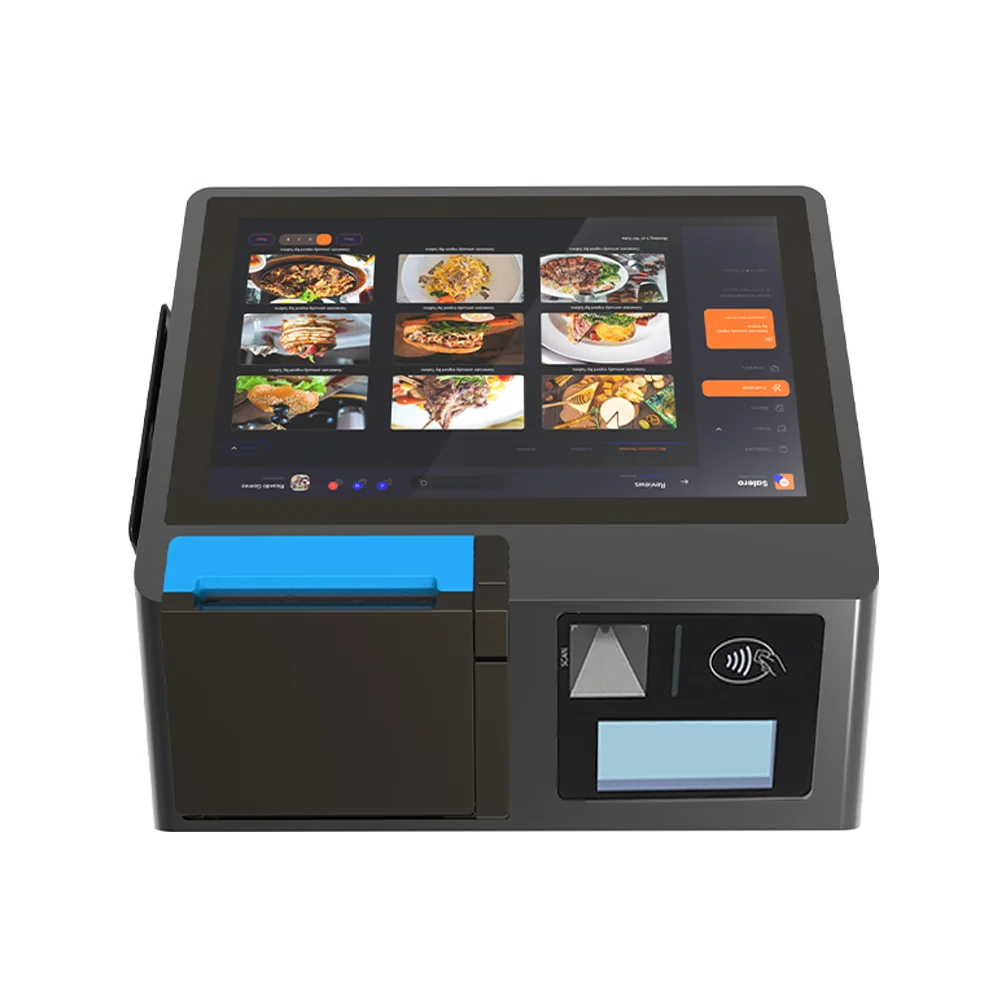

A dedicated 1D/2D infrared scanner window paired with a 5MP camera delivers fast, accurate barcode scans even in low-light conditions, ideal for high-volume retail and restaurant environments.
4G LTE, WiFi, Bluetooth 5.0, and GPS keep the D1 connected and synchronized from any location. Dual SIM slots provide network redundancy for multi-location chain operations.
The optional 5600mAh Li-ion battery transforms the D1 from a countertop POS into a fully cordless mobile solution, perfect for food trucks, pop-up markets, and outdoor events.
The D1 Android terminal is tested and certified for compliance with international safety, electromagnetic compatibility, and environmental standards, suitable for deployment across global markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Federal Communications Commission certified, ensuring the product meets RF emission and electromagnetic compatibility standards for the United States market.
Restriction of Hazardous Substances compliant, ensuring the product is free from restricted hazardous materials in electrical and electronic equipment.
We provide flexible OEM and ODM services for the D1 Android terminal, helping partners build branded all-in-one POS hardware tailored to their market requirements and deployment scenarios.
Silk-screen logo, custom color finishes, and branded packaging to match your corporate identity.
Custom Android firmware, pre-installed POS software, kiosk mode lockdown, and SDK support for software integration teams.
Choose 58mm or 80mm thermal printer width and configure scanner sensitivity profiles for specific barcode types and lighting conditions.
Customize card reader configurations with NFC-only, IC-only, or full triple-interface modules. Dual SAM slot encryption for certified payment processing.
Select connectivity combinations (4G, WiFi, Bluetooth, GPS) and include the optional 5600mAh battery for mobile deployment scenarios.
MOQ-flexible pricing, custom retail packaging, and standard 12-month warranty with remote technical support for global customers.
The D1 Android terminal supports multiple configurations to match different business scenarios. Compare the options to find the right setup for your application.
| Configuration | Printer | Battery | Connectivity | Best For |
|---|---|---|---|---|
| D1 Standard | 58mm | No | WiFi + LAN | Coffee shops, boutiques, small retail with stable network |
| D1 Pro | 80mm | No | WiFi + LAN | Restaurants, convenience stores with higher receipt volume |
| D1 Chain | 80mm | Optional | Dual SIM 4G + WiFi | Multi-location chains needing network redundancy |
The D1 Android terminal is designed to serve a wide range of industries where compact, all-in-one POS functionality with integrated printing, scanning, and payment is essential.

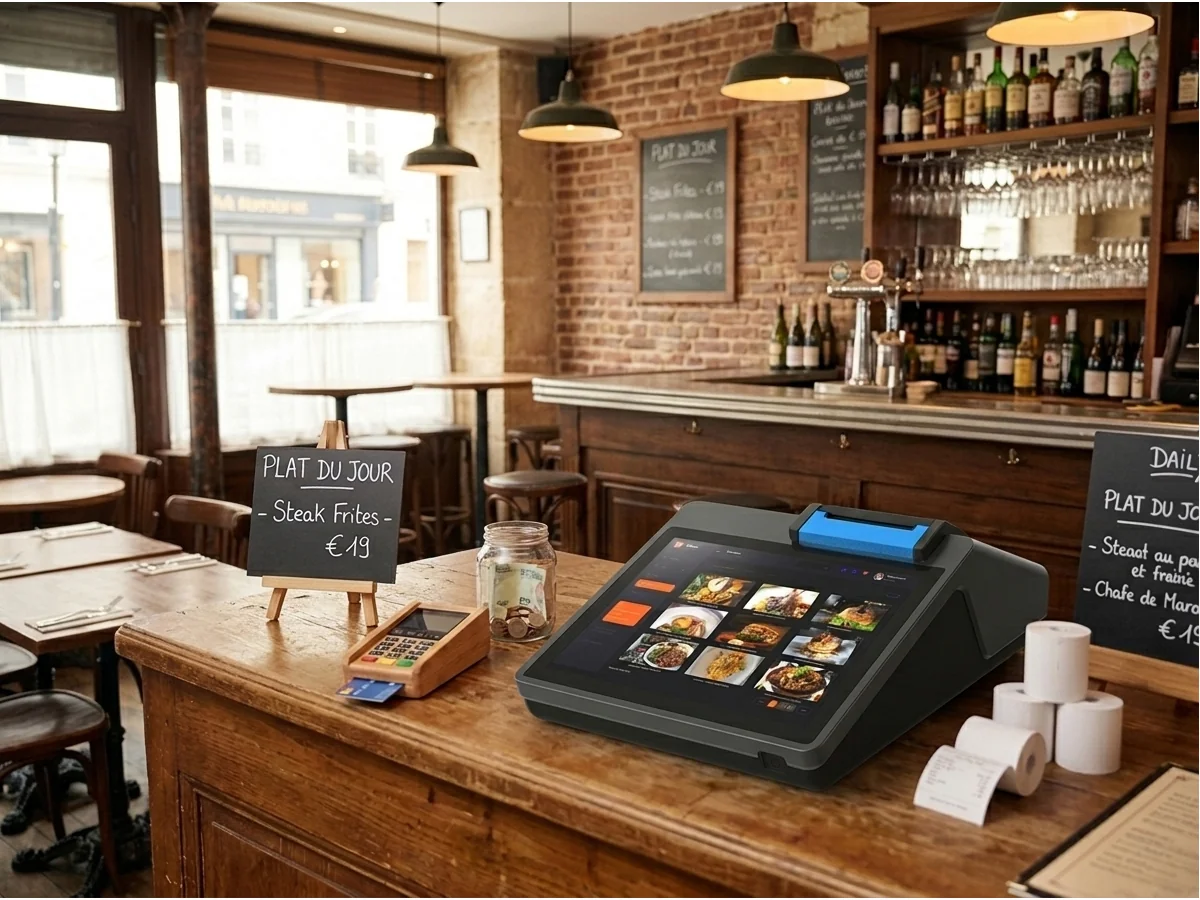

Fast order processing with built-in receipt printing and barcode scanning. The compact form factor fits narrow counters perfectly in QSR environments.
Explore Restaurant Solutions →The optional 5600mAh battery eliminates power dependency. Pair 4G connectivity with cloud-based POS software for complete mobile operation.
Integrated scanner handles high-volume barcode scanning, while 4G connectivity enables real-time inventory synchronization across multiple locations.
Explore Retail Solutions →Lightweight at only 1.44kg, the D1 sets up in minutes. NFC payment support covers tap-to-pay transactions for event vendors and market stalls.
Dual-screen display shows order details to customers while staff process transactions on the main touchscreen. Compact footprint suits cafe counters.
Professional appearance and small footprint match premium retail environments, with versatile connectivity for peripherals and payment systems.
Contact our team for datasheets, configuration guidance, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right D1 Android terminal for your business.
