The SU600 RFID Tag Printer for Asset Management is a thermal printer featuring 600DPI, 100mm/s Speed, purpose-built for smart asset tagging and management.
This UHF RFID tag printer encodes and prints high‑performance RFID asset tags for end‑to‑end asset management. It supports hotel linen & textile tracking to reduce fabric loss, and library book tagging to simplify borrowing, return and stocktaking workflows, also applicable for various fixed‑asset identification in institutional premises.
| Models | SU600 |
| Print Method | Thermal Transfer / Thermal Direct |
| Resolution | 600dpi |
| Print Speed | 100mm/s |
| Print Width | 105mm |
| Print Length | 1000mm |
| Command Set | TSPL-II, ZPL-II |
| Memory (Standard) | FLASH 256Mbit + SDRAM 256Mbit |
| Memory (Optional) | FLASH 2Gbit + SDRAM 1Gbit |
| RFID Protocol | ISO 18000-6C (EPC Gen2), UHF 860-960 MHz |
| RFID Chip Support | NXP, Impinj, Alien (TID & EPC read/write) |
| Tag Types | Metal tags, Non-metal tags |
| Label Width | 20 - 110mm |
| Label Roll Core | Max. 127mm |
| Label Roll Diameter | Max. 127mm |
| Ribbon Length | 300m |
| Ribbon Core | 25.4mm |
| Ribbon Width | 30 - 110mm (outward winding) |
| Interfaces (Standard) | USB + Ethernet + Serial (RS232) + USB Host |
| Interfaces (Optional) | Bluetooth / WiFi / Bluetooth+WiFi |
| USB Host | Barcode scanner, keyboard, BAS program download |
| RS232 | Electronic scale, weight-based printing |
| Display (Optional) | 4.3 inch TFT LCD capacitive touchscreen, 480x800, 16-bit RGB |
| 1D Barcode | CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN8, CODABAR, UPC-A, UPC-E, MSI, PLESSEY |
| 2D Barcode | QR Code, PDF417, DataMatrix, Aztec |
| Power Supply | DC 24V / 2.5A |
| Weight | 2.5 kg |
| Dimensions | 205 x 270 x 168mm (W x D x H) |
| Certifications | CCC, CE, RoHS |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch how the SU600 RFID Tag Printer for Asset Management is set up and used in real workflows. Visit our Operation Videos center for the full product playlist.
Watch VideosComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe SU600 RFID Tag Printer for Asset Management is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.

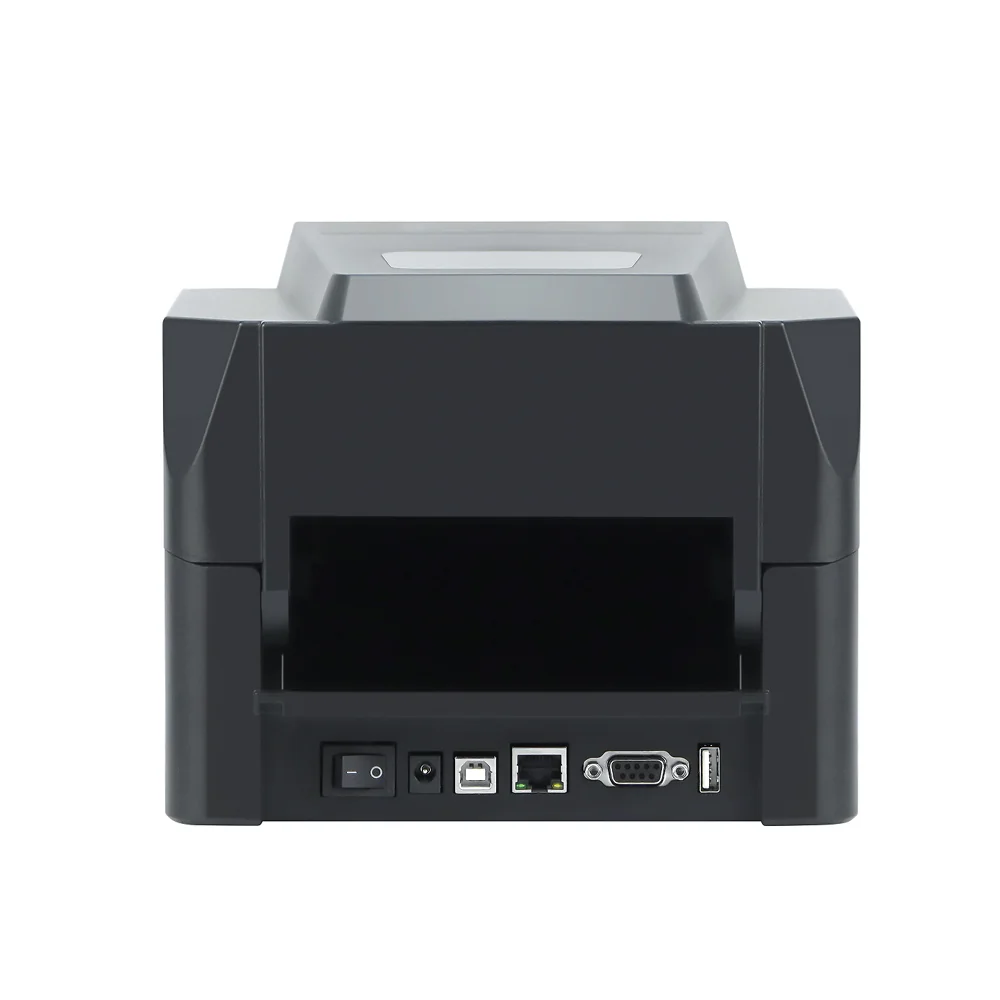

USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your SU600 RFID Tag Printer for Asset Management integration.
Integrated UHF RFID module reads and writes TID and EPC data on ISO 18000-6C compliant tags, turning every asset into a traceable, smart tag in a single pass.
Engineered for asset labels that demand precision, the SU600 prints at 600dpi with a 100mm/s throughput and a 105mm print width for crisp text, barcodes, and compact 2D codes.

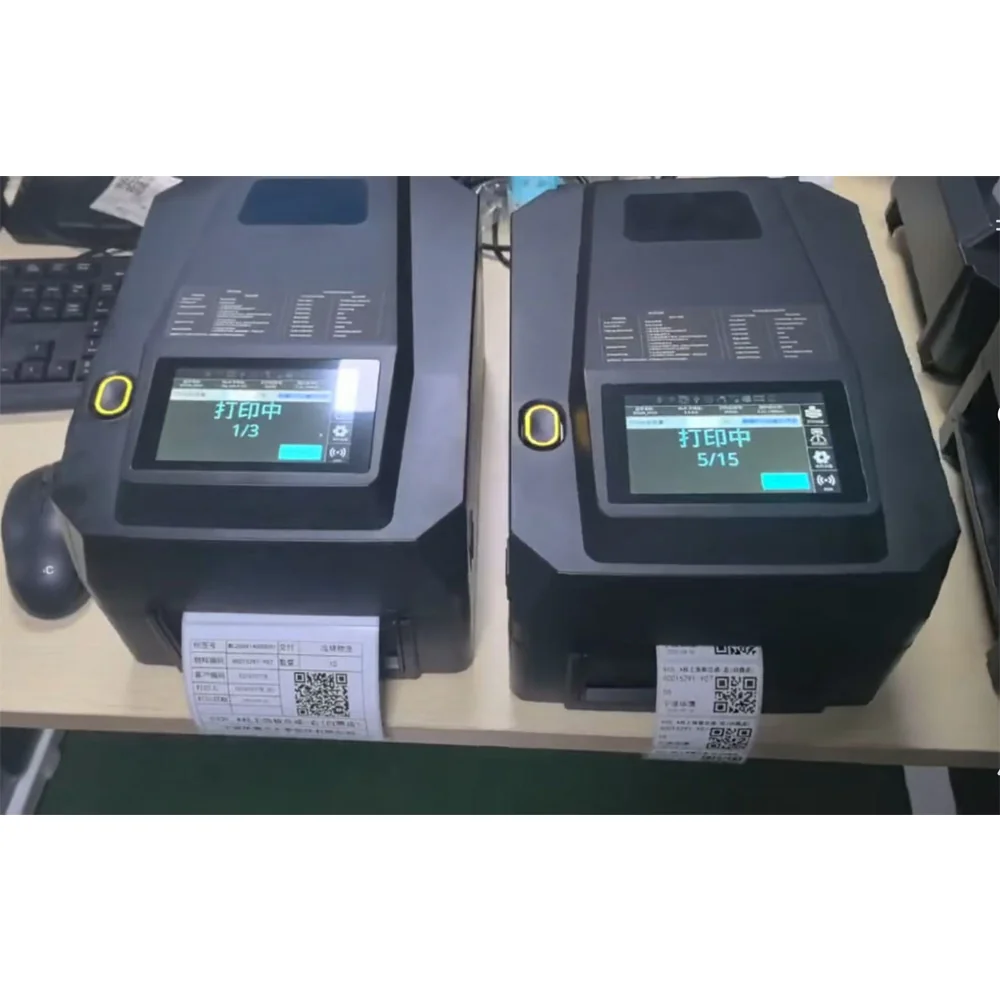

An optional 4.3 inch industrial TFT LCD capacitive touchscreen enables standalone tag printing and real-time status monitoring without a connected PC, ideal for stockrooms and asset centers.
Hotels, factories, and enterprises face persistent asset-management challenges that drive up cost and erode efficiency. The pain points below show why traditional tagging and manual audits fall short.
With many circulation links across laundry and rooms, hotels must purchase an extra 20% of linen every year just to cover losses.
Manual fixed-asset counting is inaccurate, time-consuming, and labor-intensive, leaving managers without reliable data.
Without real-time visibility, assets are easily misplaced or lost, and no one knows exactly where they are.
The SU600 RFID tag printer delivers an integrated asset-management solution that turns every tag into real-time, traceable intelligence — helping enterprises cut loss, speed up audits, and improve asset visibility.
Track every asset from inbound to retirement for higher efficiency and data accuracy across its full life cycle.
Monitor asset location in real time to keep information transparent and reduce loss and idle time.
Precisely locate the exact link where an asset was lost to stop theft and speed up recovery.
Compare the three RFID tag printer models to find the right resolution, speed, and print width for your application.
| Model | Resolution | Print Speed | Print Width | Max Print Length | Best For |
|---|---|---|---|---|---|
| SU200 | 203dpi | 200mm/s | 104mm | 4000mm | High-speed logistics labels, shipping tags, warehouse asset tracking |
| SU300 | 300dpi | 150mm/s | 108mm | 3000mm | Detailed barcodes, small text labels, retail RFID hang tags |
| SU600 | 600dpi | 100mm/s | 105mm | 1000mm | Ultra-fine micro-text, compact 2D codes, medical and pharma labels |
The SU600 RFID tag printer brings smart-asset capabilities to hotels, enterprises, and asset centers, combining on-demand visual tag printing with UHF RFID encoding for source tracing, real-time location visibility, and faster, more accurate asset operations.
Tag IT equipment, tools, and fixed assets with RFID labels for automated inventory audits, reducing manual counts and improving accuracy across the enterprise.
Explore Asset Solutions →Encode RFID tags into linen, towels, and uniforms to track every item through laundry, storage, and rooms — cutting the 20% annual loss from circulation and streamlining linen control.
Explore Hotel Solutions →Contact our team for datasheets, model selection guidance, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right RFID tag printer for your business.
