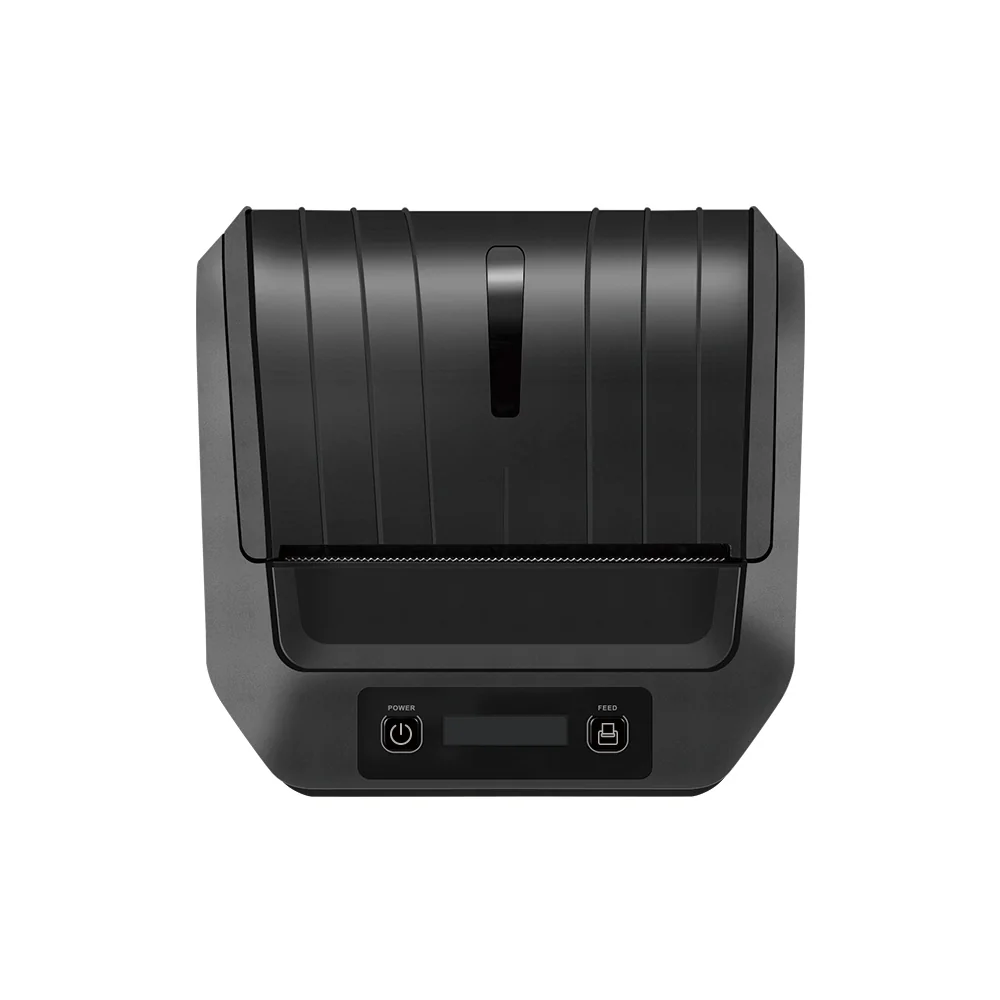

The H803 Mobile Printer Wireless for Linerless Printing is a thermal printer featuring 203 DPI, 80-120mm/s Speed.
Built for harsh environments, the H803 Plus features IP54 dust and splash protection, 1.5-meter drop resistance, and a 50KM-rated print head life. It supports ESC/POS, TSPL, CPCL, and ZPL command sets with automatic switching, making it compatible with virtually any mobile POS or label printing app. The 128x32 OLED display and Type-C fast charging complete a professional mobile printing solution. CE and FCC certified, with full OEM and ODM customization available.
| Model | H803 Plus |
| Print Method | Direct Thermal Line |
| Resolution | 203 dpi |
| Print Width | 2-inch and 3-inch (25-80mm) |
| Print Speed | 80-120mm/s |
| Interfaces | USB (Type-C) + Bluetooth 5.0 (Standard); USB + Bluetooth + WiFi (Optional) |
| NFC | Yes - Quick Pairing |
| Print Head Life | 50KM |
| Buffer | DRAM: 8M, Flash: 16M |
| Command Set | ESC/POS, TSPL, CPCL, ZPL (Auto Switch) |
| Paper Type | Gap, Continuous, Black-mark Paper |
| Paper Width | 25mm - 80mm |
| Paper Roll Diameter | Max. 50mm |
| Paper Thickness | 0.06 - 0.17mm |
| Paper Off Way | Top Paper Out, Tear Off |
| Character Set | GB18030, BIG5, KSC5601 (TTF Vector Font Supported) |
| 1D Barcode | CODE128, EAN128, ITF, CODE39, EAN13, EAN8, CODABAR, POSTNET, UPC-A, UPC-E, etc. |
| 2D Barcode | PDF417, QR Code |
| Display | 128 × 32 OLED Black/White Display |
| Operation Buttons | POWER, FEED |
| Battery | 2600mAh / 7.4V Rechargeable Li-ion |
| Continuous Printing | ≥230 Meters (12.5% Print Density) |
| Standby Time | ≥160 Hours |
| Battery Cycle Life | 300 Cycles (≥80% Capacity Retention) |
| Charge Time | Approx. 4 Hours (Type-C Fast Charging) |
| Power | Input: AC 100-240V 50/60Hz, Output: DC 5V/2A |
| Protection Rating | IP54 (Dust & Splash Resistant) |
| Drop Resistance | 1.5 Meters |
| Work Environment | Temperature: 5-40°C, Humidity: 20-90% |
| Storage Environment | Temperature: -25-55°C, Humidity: 20-93% |
| Weight (without battery) | 300g |
| Weight (with battery) | 410g |
| Dimensions | 116 × 114 × 62.5mm |
| Software | Android/iOS Label Editing APP, SDK |
| Accessories | USB Cable × 1, USB Power Charger × 1, Manual × 1 |
| Certifications | CE, FCC, RoHS |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch the H803 mobile portable printer survive 10 drops from 1.5 meters in this rugged durability test — engineered for linerless and on-the-go printing in tough environments. Visit our Operation Videos center for the full product playlist.
Watch VideosWatch the 3-inch portable thermal printer with carrying case work on rainy days — it prints waterproof, sun-proof linerless labels that stick straight onto car windows for traffic penalty tickets. The linerless design means instant print-and-paste with no backing paper to peel, boosting efficiency and cutting waste. Visit our Operation Videos center for the full product playlist.
Watch VideosGet up and running in minutes. Covers unboxing, setup, media loading, and the first test print.
View ManualComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe H803 Mobile Printer Wireless for Linerless Printing is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your H803 Mobile Printer Wireless for Linerless Printing integration.
High-speed Bluetooth 5.0 dual-mode supports simultaneous multi-device connections with transfer speeds up to 40KB/s. Compatible with both Android and iOS devices for fast, stable wireless printing.

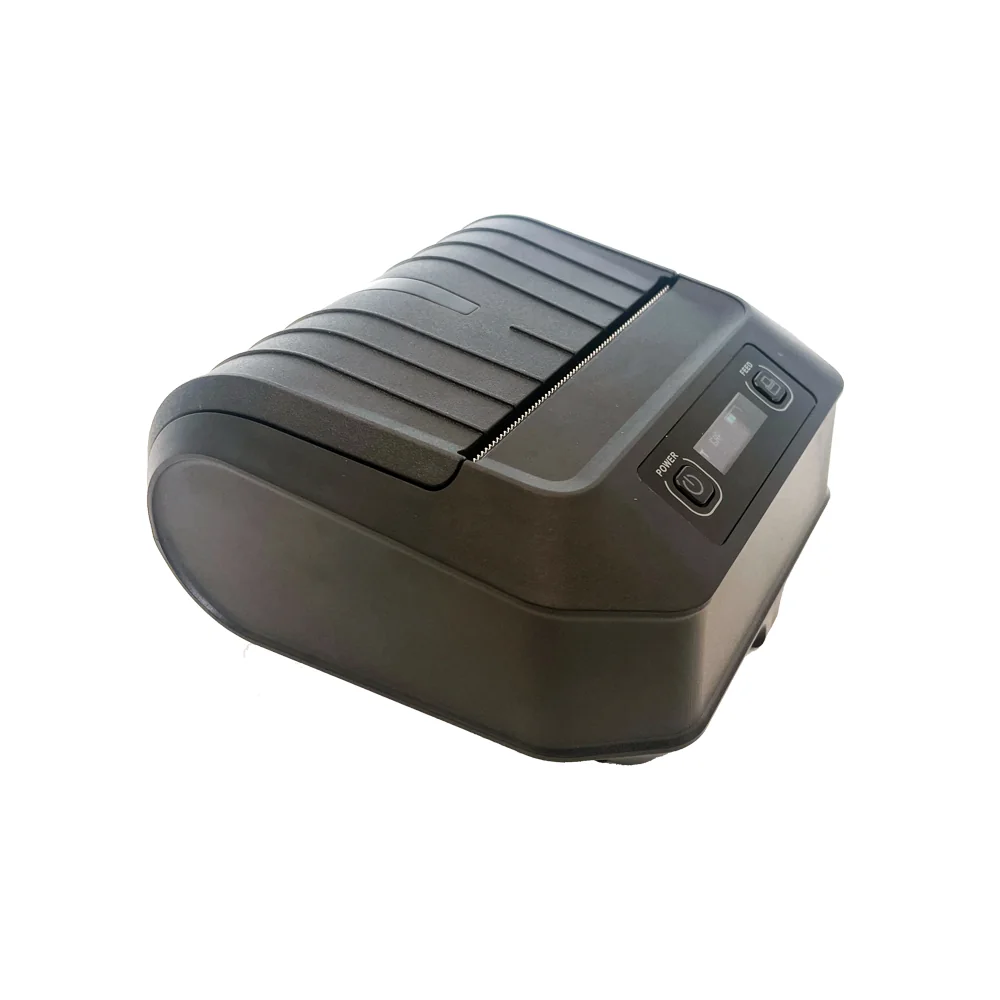

The 2600mAh / 7.4V Li-ion battery delivers 230+ meters of continuous printing and 160+ hours of standby per charge. Type-C fast charging reaches full capacity in approximately 4 hours.
IP54 dust and splash protection combined with 1.5-meter drop resistance ensures reliable operation in logistics, warehouse, and outdoor field environments. Built to withstand tough daily use.
Supports ESC/POS, TSPL, CPCL, and ZPL command sets with automatic switching. Prints receipts, labels, and waybills seamlessly, compatible with virtually any mobile POS or label app.
Built-in NFC module enables instant pairing with NFC-enabled devices. Simply tap to connect, eliminating complex Bluetooth setup procedures for faster deployment in the field.
128x32 OLED display shows printer status and settings at a glance. At only 410g and 116x114x62.5mm, the H803 Plus fits in a bag or mounts on a belt for truly mobile workflows.

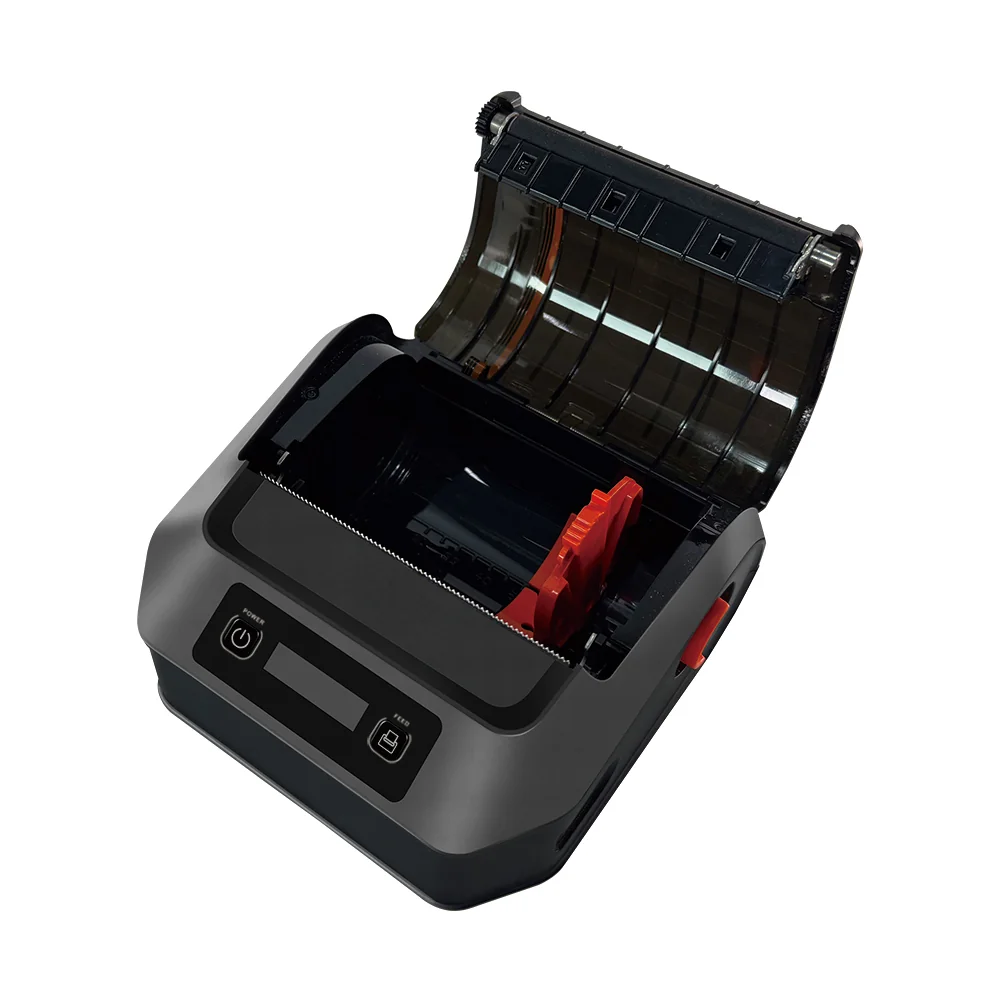

Optional customizable threaded thermal head works with linerless label paper, enabling print-and-stick operation without peeling any backing paper. This boosts efficiency while saving material for a more eco-friendly, zero-waste workflow.
An optional customized printer bag is available for outdoor operation and field work, protecting the device and making it easy to carry wherever your job takes you.
The H803 Plus portable thermal printer is tested and certified for hardware compliance, suitable for export and deployment in multiple international markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Meets United States Federal Communications Commission standards for electromagnetic interference and radio frequency emissions.
Compliant with the Restriction of Hazardous Substances Directive, ensuring environmentally responsible manufacturing.
We provide flexible OEM and ODM services for the H803 Plus portable thermal printer, helping partners build branded mobile printing solutions for their markets.
Silk-screen logo, custom color finishes, and branded packaging to match your corporate identity.
Custom firmware adjustments, command set compatibility (ESC/POS / TSPL / CPCL / ZPL variants), and SDK support for software teams.
Choose between standard USB+Bluetooth or optional USB+Bluetooth+WiFi configurations to match regional market demands.
Optional NFC module, battery capacity variants, and regional plug types for global distribution.
MOQ-flexible pricing, custom retail boxes, and accessories bundles for bulk orders.
Standard 12-month warranty, remote technical support, and spare parts service for global customers.
Compare the H803 Plus with other members of our H803 portable printer family to find the right fit for police ticketing, logistics, and field service.
| Model | Type | Print Width | Speed | Connectivity | Best For |
|---|---|---|---|---|---|
| H803 Plus | 80mm Portable | 25-80mm | 80-120mm/s | BT 5.0 + USB + NFC | Police ticket, mobile billing, logistics, field service |
| H803 Portable Thermal Printer | 80mm Portable | 25-80mm | 80-120mm/s | BT 5.0 + USB + NFC | Receipt & label printing, retail, logistics |
| H803 SE Handheld Label Printer | 80mm Handheld Label | 25-80mm | 80-120mm/s | BT 5.0 + WiFi + NFC | Handheld label printing, wristbands, field tagging |
The H803 mobile printer is built for on-the-go law enforcement and field service: print police tickets, traffic fines, parking citations, and field service receipts anywhere, instantly and wirelessly.
Issue police tickets, traffic fines, and parking citations on the spot. The rugged 80mm portable printer, 2600mAh battery, and IP54 rating support all-day roadside and field operations.
Explore Ticketing Solutions →Contact our team for datasheets, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right portable thermal printer for your business.
