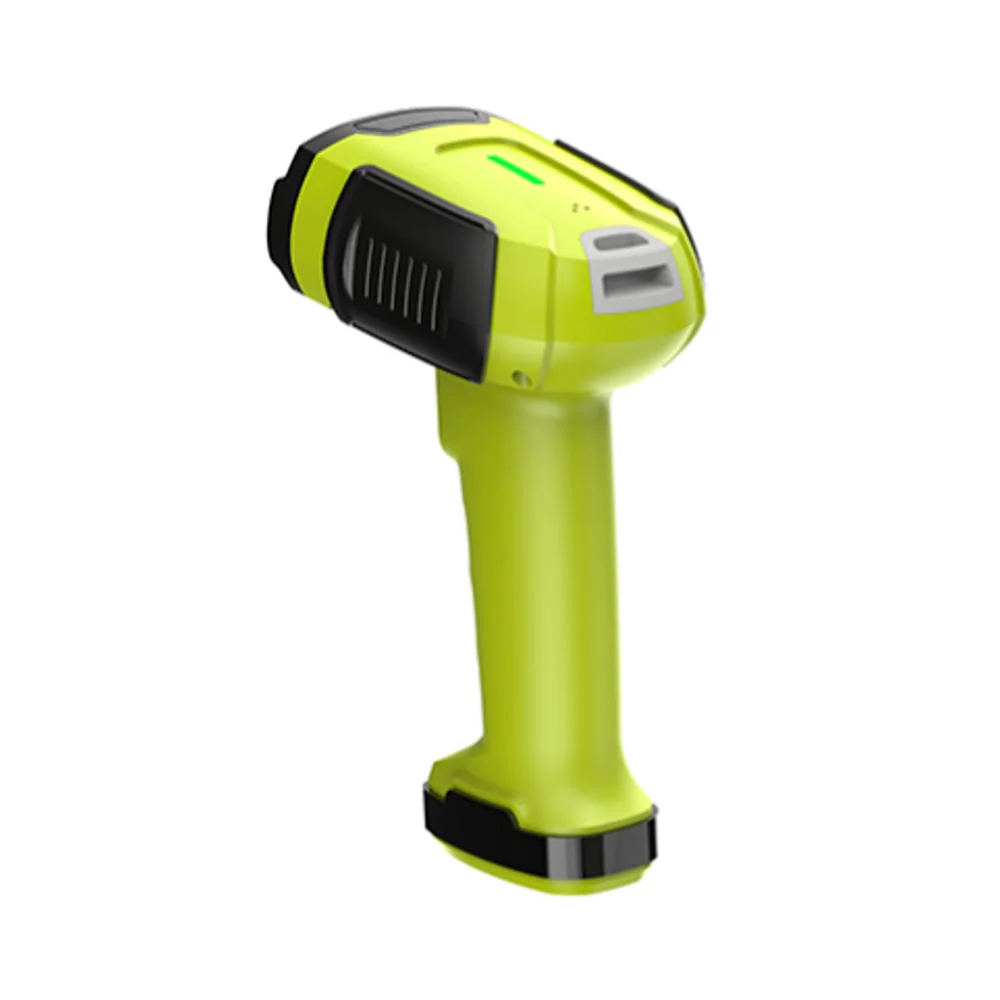

The MJ-2025 is an industrial-grade 2D AI QR code scanner powered by a quad-core AI engine that delivers 3M/s high-speed dynamic scanning. With a 433MHz wireless charging base (up to 1000m outdoor) and Bluetooth 5.0, it integrates seamlessly with MES/ERP systems for real-time data sync and full-process traceability.
The MJ-2025 features AI adaptive fill light, self-learning image repair, and a large-format imaging module that reads wrinkled, worn, low-contrast and yin-yang barcodes. Built IP65 and drop-resistant to 2.5m, it performs reliably in dusty, high-temperature and mixed-light industrial workshops.
| Physical Parameters | |
| Model | MJ-2025 |
| Dimensions | 18 × 7.8 × 10.4 cm (L×W×H) |

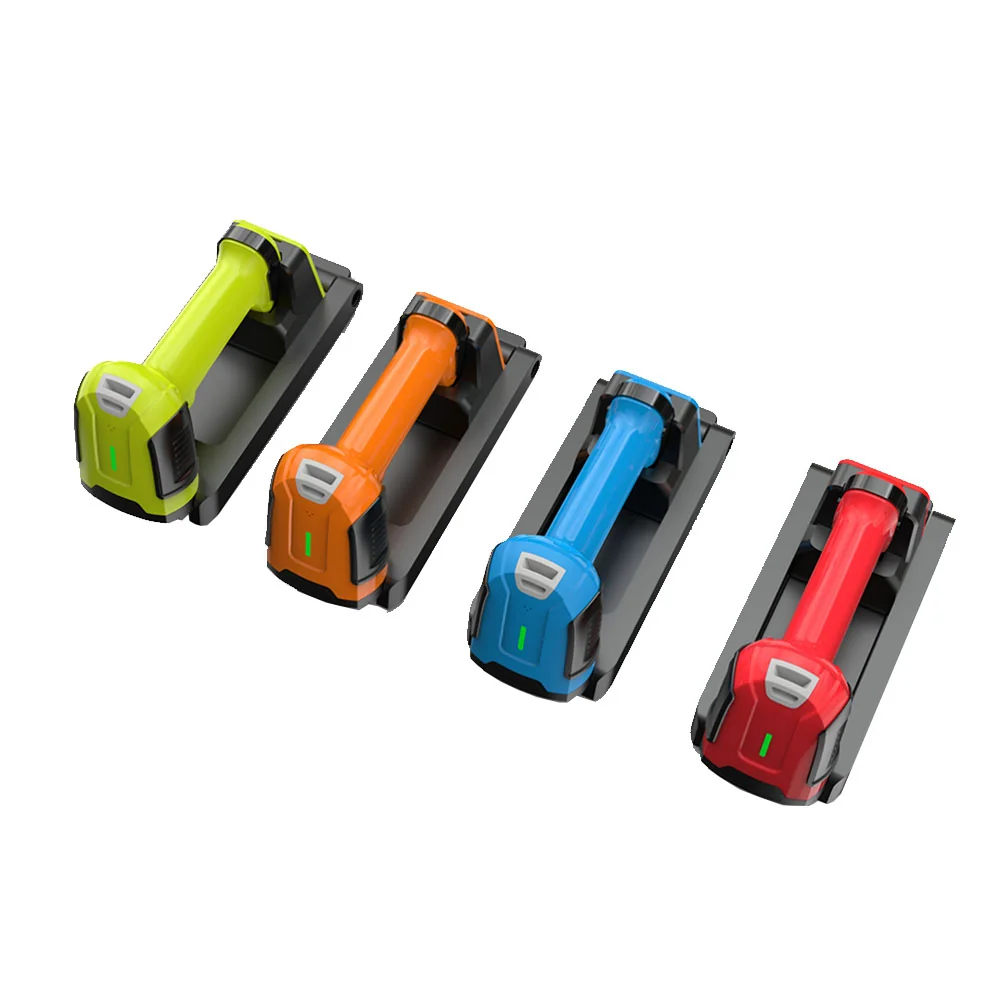

| Color | Green / Blue / Red / Orange (custom available) |
| Weight | 212 g |
| Interface | Bluetooth + 433MHz Wireless Base |
| Electrical Parameters | |
| Battery Capacity | 2600 mAh |
| Charging Time | ≈6 hours |
| Working Time | Up to 24h (scan every 5s) |
| Standby Time | ≥90 days |
| Input Voltage | DC 4.8V ~ 5.3V |
| Working Current | 360mA (RMS, typical) |
| Scanning Parameters | |
| Resolution | 1296 × 816 HD CMOS |
| Light Source | White / Red fill-light LED |
| Aiming | Red cross laser |
| Indicator | LED + Buzzer + Vibration |
| Read Precision | 1D ≥3mil, 2D ≥5mil |
| Typical Depth of Field | Code39(5mil): 75–250mm; QR Code(10mil): 75–230mm |
| Print Contrast | ≥15% |
| Skew / Pitch / Roll | ±360°, ±60°, ±60° |
| Field of View | Horizontal ±48°, Vertical ±28° |
| Scan Angle | Horizontal 31°, Vertical 23° |
| Ambient Light | 0–108,000 Lux (direct sunlight) |
| Decode Capability | 1D: EAN-13, EAN-8, UPC-A, UPC-E, Code39, Code128, ISBN, Code93, Code11, UCC/EAN-128, GS1 Databar, Interleaved 25, Matrix 25, Industrial 25, Codabar, Standard 25, MSI, GS1 Composite, etc. 2D: PDF417, Data Matrix, QR Code, Hanxin Code, AZTEC, MaxiCode |
| Wireless Parameters | |
| Storage Capacity | ≥20,000 codes (13-digit) |
| Bluetooth | Bluetooth 5.0 (BLE / HID / SPP) |
| Bluetooth Range | 30m (open) / 10m (indoor) |
| 433MHz Wireless | Outdoor 1000m / Indoor 100–200m (≤10 walls) |
| Environmental Parameters | |
| Operating Temp | 0°C ~ +50°C |
| Storage Temp | -20°C ~ +60°C |
| Humidity | 5%–95% (non-condensing) |
| Drop Resistance | Multiple 8.0ft / 2.5m drops onto concrete |
| Tumble | 3.3ft / 1m, 5000 tumbles |
| Sealing | IP65 dustproof |
| Certification Parameters | |
| Certifications | CE, RoHS, FCC |
| Electrical Safety | EN 60950-1 |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch how the MJ-2025 scanner is set up and used in real workflows. Visit our Operation Videos center for the full product playlist.
Watch VideosGet up and running in minutes. Covers unboxing, setup, pairing, and the first test scan.
View ManualComplete reference covering commands, interface configuration, protocol settings, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe MJ-2025 2D Bluetooth Wireless Handheld Barcode Scanner is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system.
Emulates keyboard input — works instantly with any POS, ERP, or spreadsheet application without driver installation.
Serial Port Profile for legacy systems requiring raw serial data capture and custom parsing.
Bluetooth Low Energy for modern mobile apps with custom SDK integration on iOS and Android.
Compatible with Windows (XP/7/8/10/11), Android, iOS, Linux, and MAC — plug-and-play, auto-adapts cable type.
Built-in 16MB memory stores 50,000+ barcode records. Upload via USB when back in range.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your MJ-2025 integration.
Switch freely between wired USB, Bluetooth 5.1, and 2.4G wireless modes to fit any workstation or mobile environment.
Supports HID virtual-keyboard, SPP serial port, and BLE low-energy protocols — no ERP modification needed, just capture the cursor.
Built-in 16MB memory stores 50,000+ barcode records; offline scanning keeps workflow going even without network coverage.
Line-of-sight wireless transmission up to 80m with stable, low-latency data delivery for warehouse and retail floor use.
Silicone + plastic industrial design survives 1.5m multiple drops onto concrete without damage.
Works with Windows (XP/7/8/10/11), Android, iOS, Linux and MAC — plug-and-play, auto-adapts cable type.

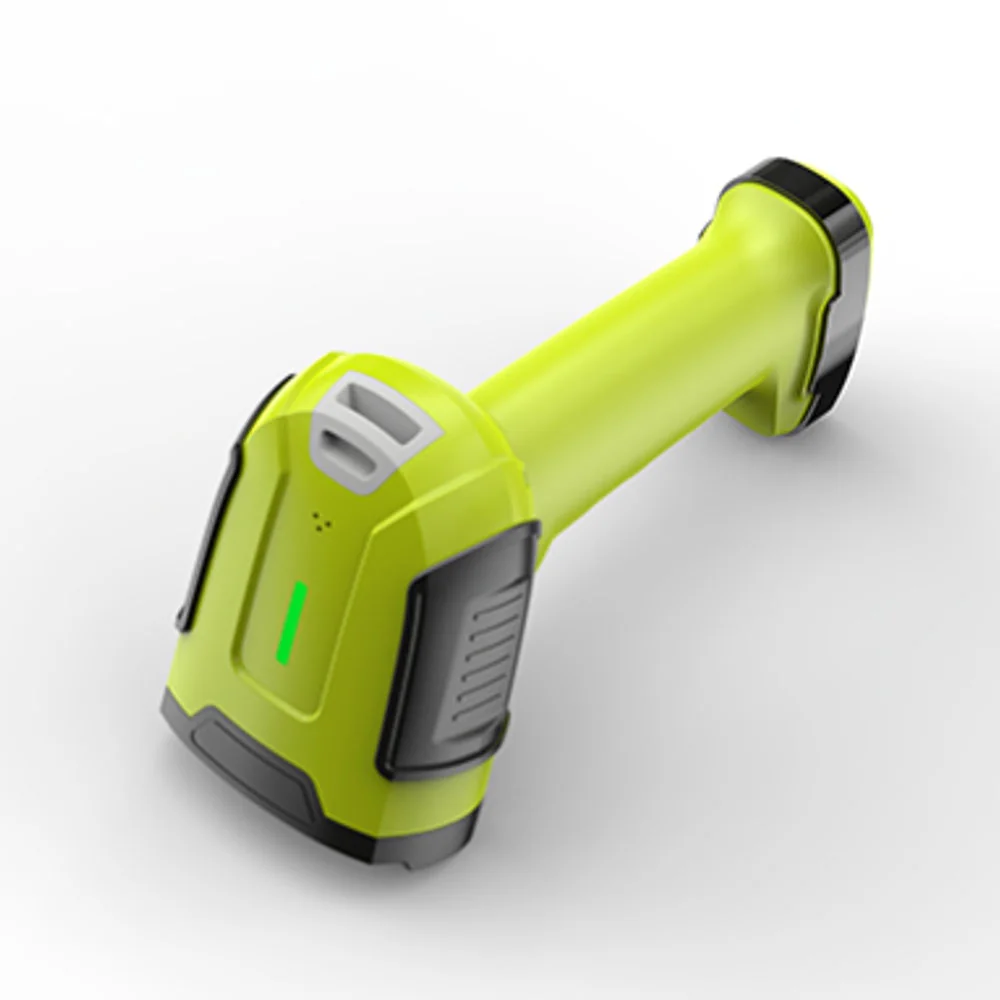

Supports Chinese-character transmission and automatically reconnects after Bluetooth dropout for uninterrupted operation.
Unique power-management system with 1800mAh battery delivers extra-long standby for all-day operation.
The MJ-2025 industrial-grade QR code AI scanner is tested and certified for hardware compliance, suitable for export and deployment in multiple international markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Meets United States Federal Communications Commission standards for electromagnetic interference and radio frequency emissions.
Restriction of Hazardous Substances compliant — free from restricted materials for environmentally responsible deployment.
Not sure which scanner fits your needs? Compare the MJ-2025 industrial AI scanner with our MJ-4591 Bluetooth handheld scanner to find the right model for your application.
| Feature | MJ-2025 Industrial AI | MJ-4591 Bluetooth |
|---|---|---|
| Positioning | ||
| Best For | Manufacturing, production lines, harsh industrial environments | Retail, logistics, warehouse, healthcare, mobile payment |
| Scanning Engine | Quad-core AI engine (3M/s dynamic scanning) | Standard CMOS decoder (high-speed 1D/2D) |
| Wireless & Range | ||
| Wireless Tech | 433MHz Wireless Base + Bluetooth 5.0 | Bluetooth 5.1 (HID / SPP / BLE) + 2.4G |
| Wireless Range | 1000m outdoor (433MHz) / 30m BT | 80m line-of-sight (BT / 2.4G) |
| Offline Storage | ≥20,000 codes (13-digit) | 50,000+ codes (16MB) |
| Durability | ||
| Drop Resistance | 2.5m onto concrete | 1.5m onto concrete |
| Sealing | IP65 dustproof | IP54 equivalent |
| Operating Temp | 0°C ~ +50°C | -20°C ~ +50°C |
| Weight | 212g | 160g |
| Power | ||
| Battery | 2600 mAh (≈24h working) | 1800 mAh (ultra-long standby) |

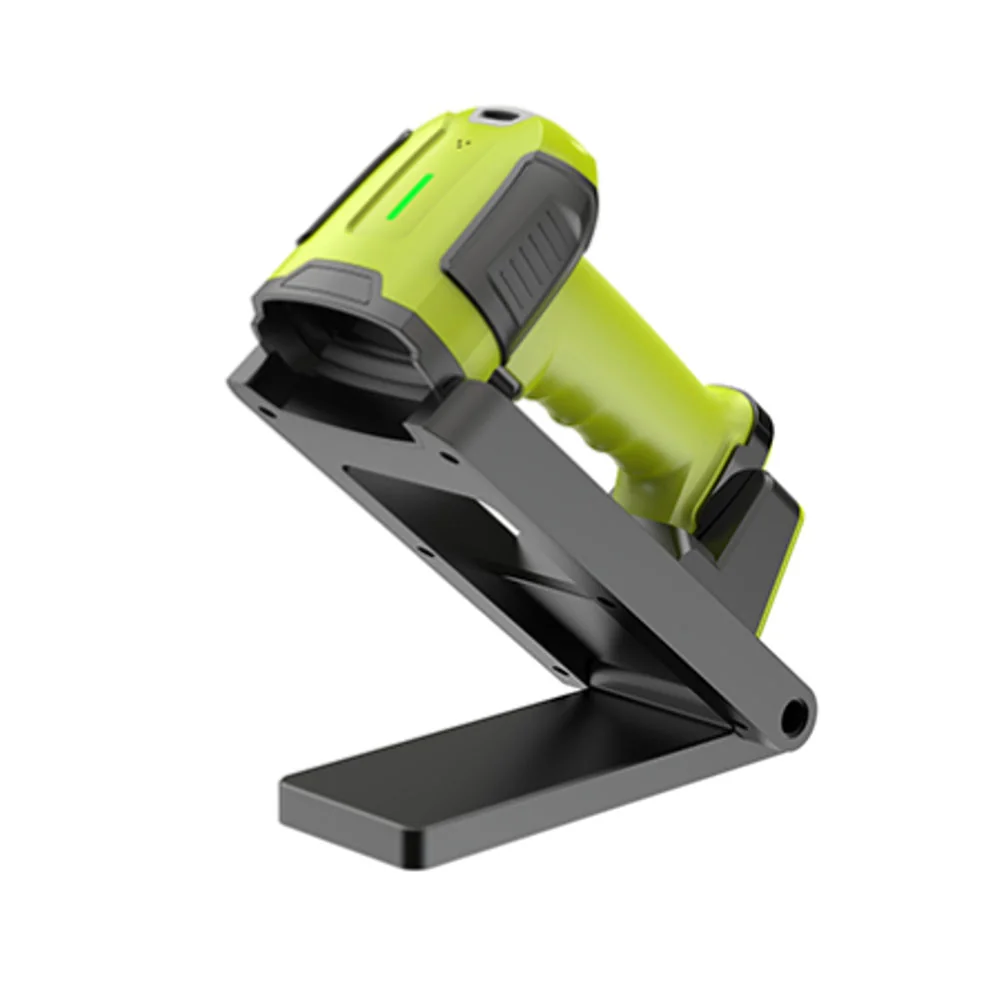

| Charging | 433MHz wireless charging base with stand | USB-C charging cradle (optional) |
| Special Features | ||
| AI Features | AI adaptive fill light, self-learning image repair, MES/ERP integration | HID virtual keyboard, auto-reconnect, Chinese char support |
| Ambient Light | 0~108,000 Lux (direct sunlight) | 0~100,000 Lux |
| Color Options | Green / Blue / Red / Orange (custom) | Black / White |
Need help deciding? Contact our sales team for a personalized recommendation.

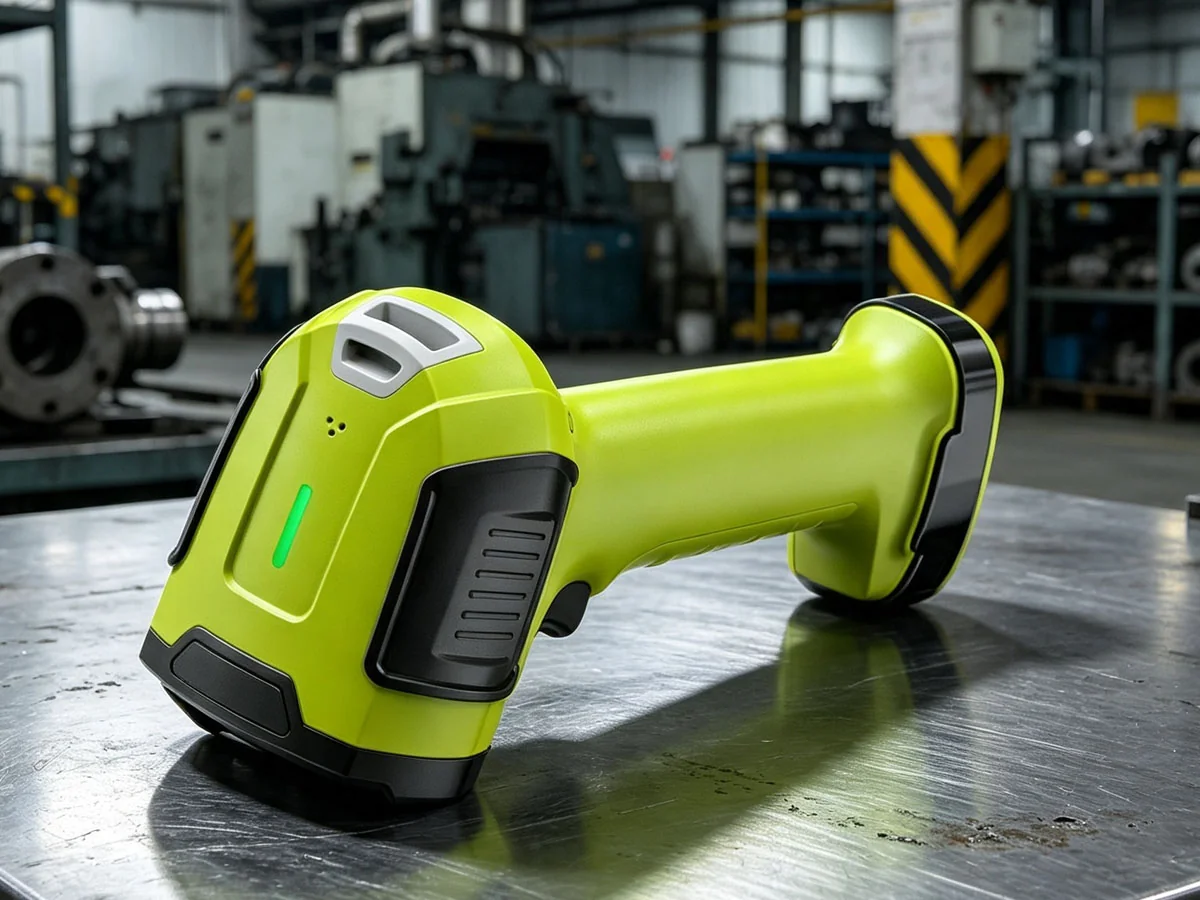

The MJ-2025 industrial-grade AI QR code scanner is purpose-built for harsh manufacturing and production-line environments where reliability, range, and durability are critical.
The MJ-2025 integrates directly with MES/ERP systems for real-time data sync on the production line. Its 433MHz wireless base covers 1000m outdoors, ideal for large factory floors. The quad-core AI engine delivers 3M/s high-speed dynamic scanning for full-process traceability.
Explore Industrial Solutions →Offline storage for 20,000+ barcodes makes the MJ-2025 ideal for stocktaking and inventory management in warehouses. Scan items anywhere on the factory floor, then batch-upload data when back at the workstation.
The IP65-sealed body handles dust, moisture, and temperature extremes from 0°C to 50°C. The 2.5m drop resistance ensures reliable operation in busy loading docks and distribution centers.
Track tools, equipment, and WIP (work-in-progress) items across multiple zones. The AI image-repair algorithm reads even wrinkled, worn, or low-contrast labels that traditional scanners miss.
Contact our team for datasheets, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right industrial AI scanner for your production line.
Contact Us for a Quote
