The 5860III 58mm Thermal Printer Serial Port is a thermal printer featuring 203 DPI (8 dots/mm), 60 mm/s Speed.
The 5860III supports 58mm x 50mm thermal paper rolls up to 65mm diameter, custom NV logo storage in 60K bytes flash, and user-defined characters for localized receipt branding. It prints standard 1D barcodes and QR codes and supports multiple international code pages. CE, FCC, and RoHS certified, with OEM and ODM services available for custom logos, firmware, and packaging.
| Model | 5860III |
| Print Method | Direct Thermal Line |
| Resolution | 203 dpi (8 dots/mm) |
| Print Width | 57.5 ± 0.5mm (58mm class) |
| Print Speed | 60 mm/s |
| Interface | Serial (RS-232) |
| Command Set | ESC/POS (51 standard commands) |
| Paper Width | 57.5 ± 0.5mm |
| Paper Roll Diameter | Max. 65mm |
| Paper Thickness | 0.06 - 0.08mm |
| Print Columns | Font A: 32 columns, Font B: 43 columns, Simplified/Traditional Chinese: 16 columns |
| Character Size | Font A: 1.5 x 3.0mm (12 x 24 dot), Font B: 1.1 x 2.1mm (9 x 17 dot), Simplified/Traditional Chinese: 3.0 x 3.0mm (24 x 24 dot) |
| 1D Barcode | UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR, CODE93, CODE128 |
| 2D Barcode | QR Code |
| Code Pages | 26 international code pages including PC437, Katakana, PC850, PC860, PC863, PC865, WPC1252, PC866, PC852, PC858, Arabic, PT151, Greek, Hebrew, Thai, Vietnam |
| Buffer | 4K bytes |
| NV Flash | 60K bytes for logo storage |
| Cash Drawer Port | DC 12V / 1A |
| Power Supply | DC 8.5V / 3A |
| Power Adapter | Input: AC 110V-220V 50/60Hz, Output: DC 8.5V/3A |
| Print Head Life | 50KM |
| Mechanism Life | 50KM |
| Weight | 0.74 kg |
| Dimensions | 205 x 125 x 92 mm (L x W x H) |
| Package Dimension | 77 x 47 x 36 cm (12 pcs/carton) |
| Work Environment | Temperature: 0-45°C, Humidity: 10-80% |
| Storage Environment | Temperature: -10-60°C, Humidity: 10-90% |
| Certifications | CE, FCC, RoHS |
| Accessories | Power Adapter x 1, Serial Cable x 1, Paper Roll x 1, Quick Guide x 1 |
First 3 orders no MOQ for full testing; from 4th order MOQ 100 units. OEM MOQ: 100 PCS.
Upon payment: Sample 1-3 days; Mass 7-25 days (by qty & model); OEM/ODM 10-45 days.
Sample fee is charged. Sample fee is deductible from your future mass order.
12-month warranty (non-human damage) or RMA spare-parts ratio. Tech support & free software updates included.
CE / FCC / RoHS certified for global market placement.
Supported — logo, firmware, and packaging customization available.
Watch how the 5860III 58mm Thermal Printer Serial Port is set up and used in real workflows. Visit our Operation Videos center for the full product playlist.
Watch VideosGet up and running in minutes. Covers unboxing, setup, media loading, and the first test print.
View ManualComplete reference covering commands, interface configuration, and troubleshooting.
View ManualNeed the full documentation library? Browse all manuals, datasheets, and drivers in our Manuals & Datasheets Center →
View All Manuals & DatasheetsThe 5860III 58mm Thermal Printer Serial Port is built on an open, integration-friendly platform with standard command-set support, making it easy to connect with your existing POS software, kiosk app, or ERP system. Below is the compatibility overview.
Industry-standard command compatibility — works with most label/receipt design software and middleware.
USB, Ethernet, Serial, and USB Host are standard for flexible host and peripheral connection.
Optional Bluetooth and Wi-Fi modules for mobile and networked deployments.
Compatible with mainstream POS, WMS, and retail applications via standard APIs.
Supports barcode scanner, keyboard, cash drawer, and external display via USB Host / I/O ports.
SDK, drivers, and sample code available for custom application development.
Access our developer resources to build, test, and deploy your 5860III 58mm Thermal Printer Serial Port integration.

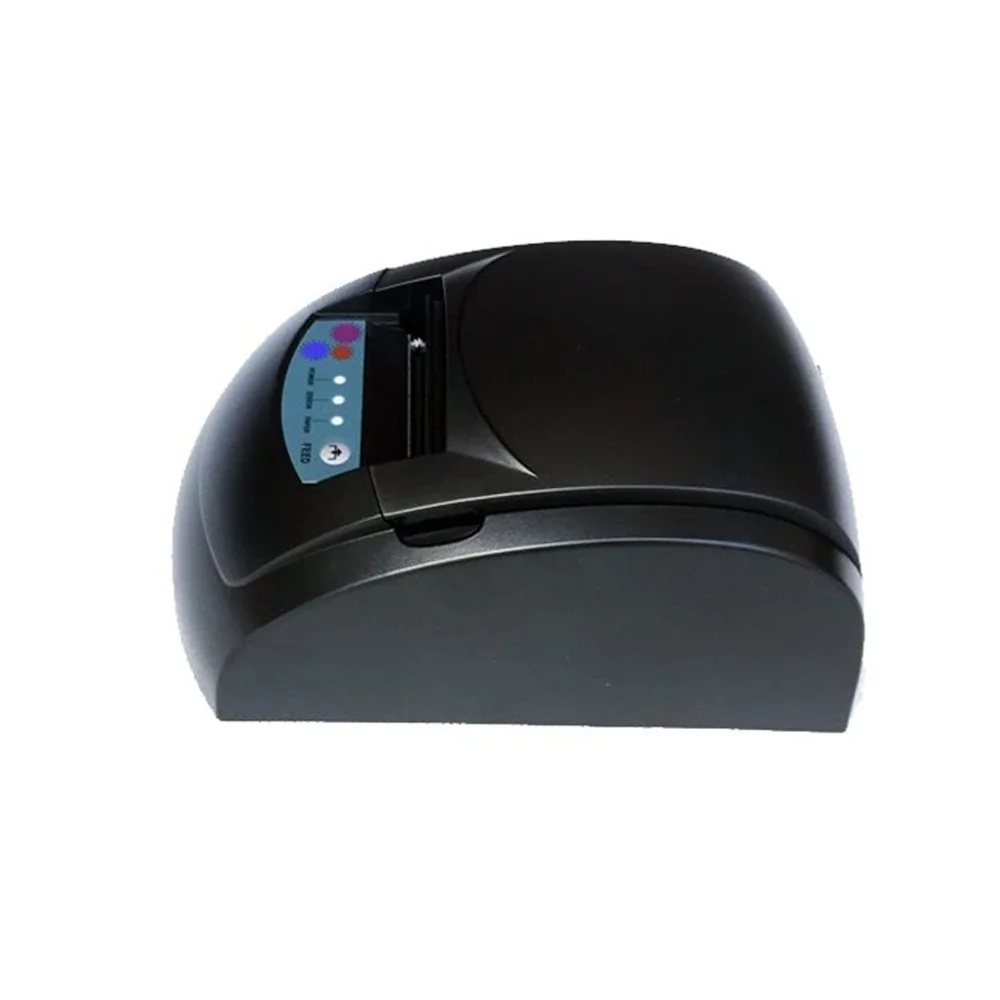

The 5860III measures just 205 x 125 x 92mm and fits neatly on small retail counters, pop-up stores, and clothing boutique checkout desks without taking up space.
Standard RS-232 serial interface provides stable wired communication with legacy POS terminals, cash registers, and embedded systems using ESC/POS commands.
Supports 51 standard ESC/POS commands with printer status monitoring, feed control, and character formatting for easy software integration.

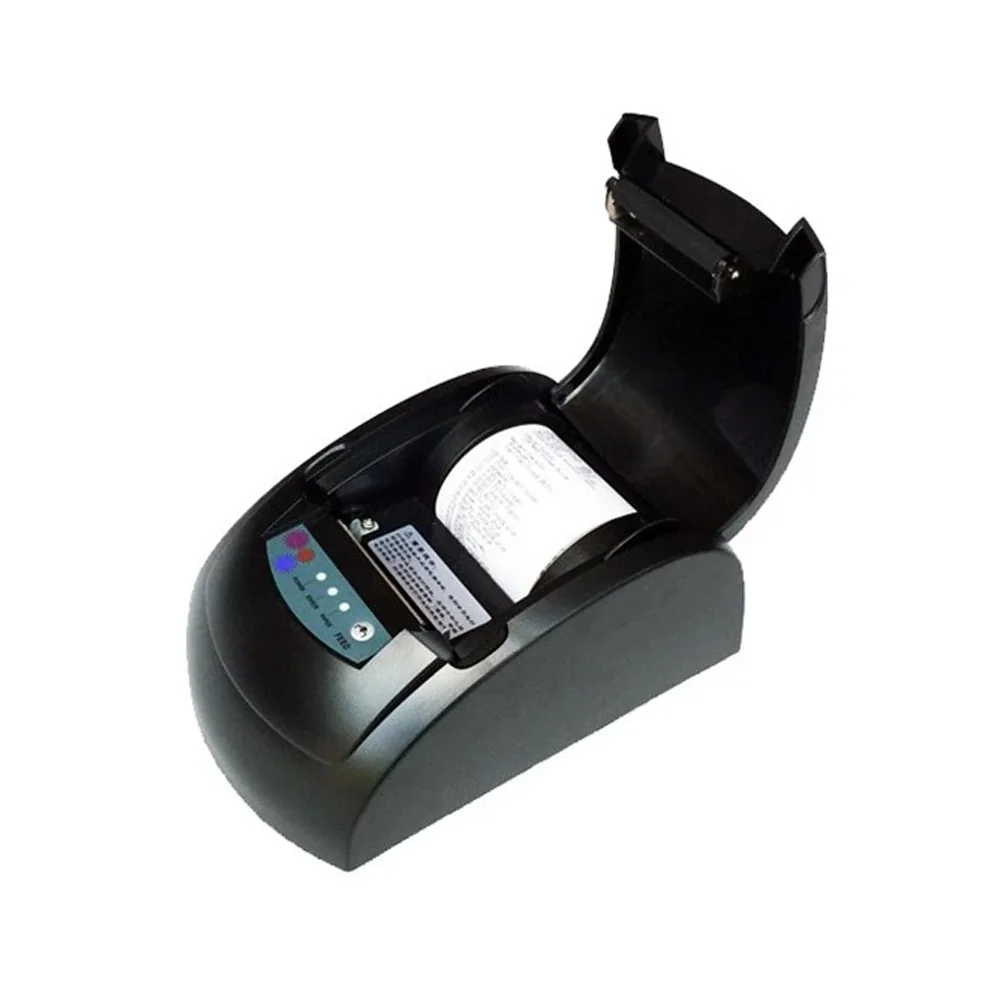

Uses standard 58mm width thermal paper with a maximum roll diameter of 65mm, ideal for retail receipts, order tickets, and bill printing.
60K bytes of NV Flash storage lets you save and print custom logos and user-defined characters for branded receipts and localized language support.
Direct thermal mechanism with a 50KM print head life delivers dependable daily receipt printing for small businesses and retail counters.
The 5860III 58mm thermal receipt printer is tested and certified for hardware compliance, suitable for export and deployment in multiple international markets.
Compliant with European health, safety, and environmental protection requirements for placement on the EU market.
Meets United States Federal Communications Commission standards for electromagnetic interference and radio frequency emissions.
Restricted hazardous substances compliant, ensuring environmentally safe materials for global distribution and recycling.
We provide flexible OEM and ODM services for the 5860III 58mm thermal receipt printer, helping partners build branded POS hardware solutions for their markets.
Silk-screen logo, custom color finishes, and branded packaging to match your corporate identity.
Custom firmware adjustments, ESC/POS command variants, and SDK support for software teams integrating 58mm receipt printing.
Serial, USB, or Ethernet interface options can be configured to match regional POS terminal and cash register requirements.
Optional power adapters, regional plug types, and cash drawer interfaces for global distribution.
MOQ-flexible pricing, custom retail boxes, and accessories bundles for bulk orders of 12 pcs/carton.
Standard 12-month warranty, remote technical support, and spare parts service for global customers.
Compare the 5860III with other thermal printers in our lineup to find the right fit for your business.
| Model | Type | Print Width | Speed | Auto Cutter | Best For |
|---|---|---|---|---|---|
| 5860III | 58mm Desktop | 58mm | 60mm/s | Manual Tear | Small retail, clothing stores, food kiosks, basic POS |
| U80C POS Receipt Printer | 80mm Desktop | 72mm | 250/500mm/s | Full & Partial | High-volume retail, restaurant, kitchen tickets |
| S-U804 80mm Receipt Thermal Printer | 80mm Desktop | 80mm | 200mm/s | Yes | Standard retail POS counters |
| H803 Portable Thermal Printer | 80mm Portable | 25-80mm | 80-120mm/s | No | Mobile billing, logistics, field service |
The 5860III 58mm thermal receipt printer is a compact and reliable printing solution for small businesses that need simple, low-cost receipt output.

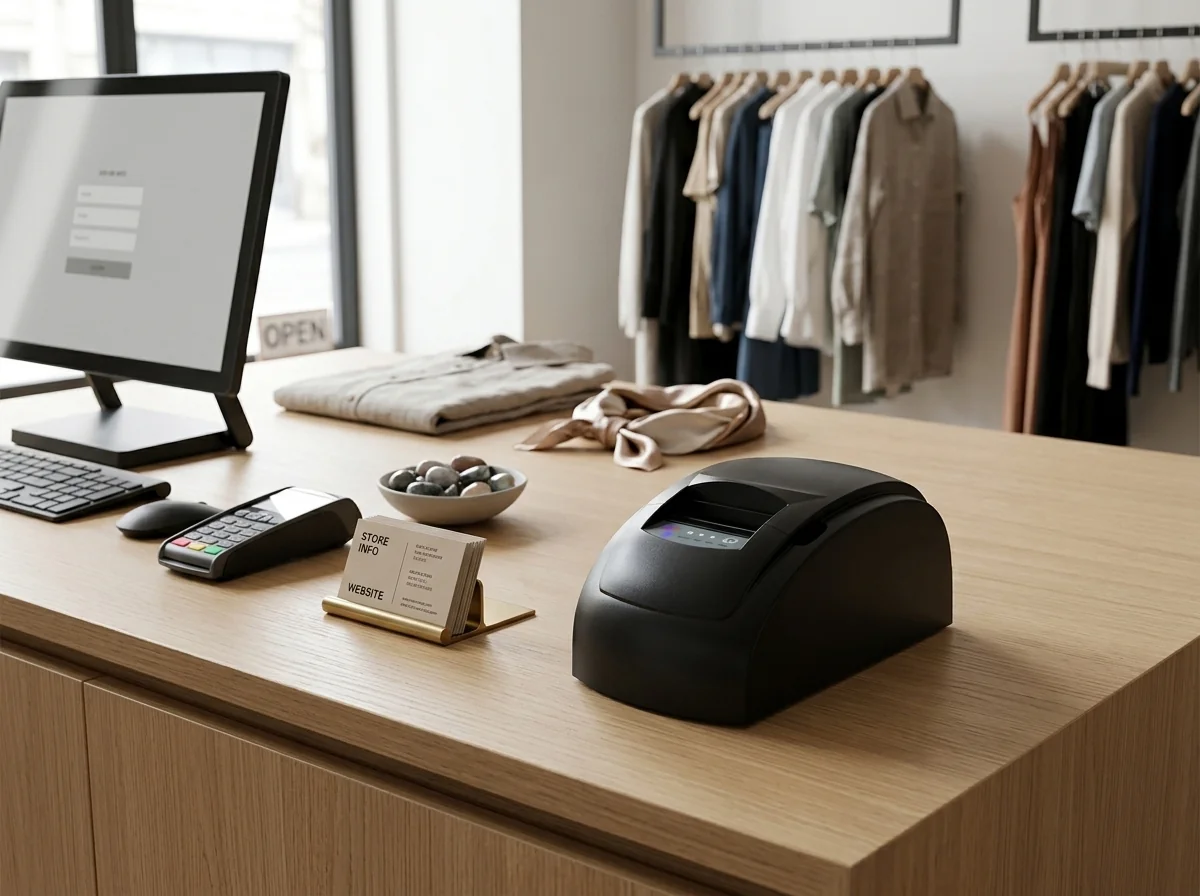

Issue compact 58mm receipts at boutique checkout counters. The small footprint and quiet thermal printing fit neatly into stylish retail environments.
Explore Retail Solutions →Print order tickets and customer receipts at food counters and small cafes. ESC/POS compatibility makes it easy to integrate with common POS software.
Explore Restaurant Solutions →Lightweight and compact enough for temporary checkout setups, mobile POS stations, and pop-up stores that need simple receipt printing.
Explore Logistics Solutions →Reliable 58mm receipt printing at checkout counters, self-service kiosks, and weighing-scale-linked POS stations for everyday billing.
Explore Retail Solutions →Print service tickets, payment confirmations, and queue receipts at reception and service counters where space is limited.
Contact our team for datasheets, OEM/ODM options, pricing, and volume discounts. We are ready to help you configure the right 58mm thermal receipt printer for your business.
